| Weight | 0.017 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | |
| Dimensions (WxHxD) | 9.8x42.5x56 mm |
| EAN code | 4013614552328 |
| Product group | SM |
| eclass | V11.0 : 27371302 |
| etim 5 | EC000041 - Auxiliary contact block |
| etim 6 | EC000041 - Auxiliary contact block |
| etim 7 | EC000041 - Auxiliary contact block |
| etim 8 | EC000041 - Auxiliary contact block |
| unspsc | 39121522 |
| standards | IEC/EN 60947-1IEC/EN 60947-5-1UL 60947-1UL 60947-5-1 |
| rohs status | Following EU Directive 2011/65/EU |

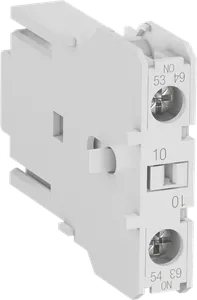

| product name | Auxiliary Contact Block |
| suitable for | MC1MC2MCR equipped with Screw terminals |
| cb certificate | https://library.abb.com/d/1SAA971002-2001 |
| cqc certificate | https://library.abb.com/d/CQC2019010304193150 |
| number of poles | 1 |
| rina certificate | https://library.abb.com/d/1SAA971000-0801 |
| rohs information | https://library.abb.com/d/1SAD938503-0305 |
| culus certificate | https://library.abb.com/d/cUL_E48139 |
| tightening torque | Auxiliary Circuit 0.8 N·m |
| e-number (finland) | 3709462 |
| rated frequency (f) | Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DC |
| degree of protection | IP20 |
| contact rating ul/csa | A600Q600 |
| wire stripping length | Auxiliary Circuit 9 mm |
| ambient air temperature | Operation -40 ... +70 °CStorage -55 ... +80 °C |
| recommended screw driver | Auxiliary Circuit Pozidriv 2 |
| tightening torque ul/csa | Auxiliary Circuit 7 in·lb |
| rated operational voltage | Auxiliary Circuit 690 V ACAuxiliary Circuit 440 V DC |
| number of main contacts nc | 0 |
| number of main contacts no | 0 |
| object classification code | K |
| suitable for product class | Mini Contactors |
| rated insulation voltage (ui) | 750 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938503-0305 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001604 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 0 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938501-1305 |
| maximum operating voltage ul/csa | 600 V AC |
| connecting capacity auxiliary circuit | Flexible with Ferrule 2x 0.75 ... 1.5 mm2Flexible with Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Flexible 1/2x 0.75 ... 2.5 mm2Rigid 1/2x 0.75 ... 2.5 mm2 |
| maximum operating altitude permissible | 3000 m |
| rated impulse withstand voltage (uimp) | Auxiliary Circuit 6 kV |
| conventional free-air thermal current (ith) | Auxiliary Circuit 10 A |
| connecting capacity auxiliary circuit ul/csa | Stranded 18-12 AWG |
