Product type: MS132-0.4KT

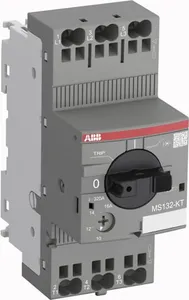

MS132-0.4KT Circuit-breaker for primary transformer protection,Trip Class 10
Description
The circuit breaker for transformer protection MS132-0.4KT is a compact 45 mm width device designed to protect control transformers on the primary side. This device has a rated operational current of Ie = 0.4 A with Push-In Spring terminals. It allows fuseless protection against overload and short-circuit. The short-circuit current setting is fixed to 20 times the rated operational current to handle the high inrush current generated by transformers. The device allows manually connect and disconnect the transformer from the mains thanks of its built-in disconnection function. The circuit breaker for transformer protection offers a rated service short-circuit breaking capacity of Ics = 100 kA at 400 VAC and trip class 10. Further features are temperature compensation, trip-free mechanism, rotary handle with a clear switch position indication and short circuit trip indicator. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips and terminal spacers are available as accessory.
Read More
- Low Voltage Products and Systems
- Control Products
- Manual Motor Starters
- Manual Motor Starters for Special Use
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SAM340010R1003.
- ZWOD Vertriebs und Logistik GmbH carries 226480 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.256 KG / psc. |
| Commodity number | 85362010 |
| Country of origin | |
| Dimensions (WxHxD) | 45x112x87 mm |
| EAN code | 4013614535130 |
| Product group | |
| eclass | V11.0 : 27370409 |
| etim 5 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 6 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| etim 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| unspsc | 39121601 |
| standards | IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1 |
| power loss | at Rated Operating Conditions per Pole 0.6 ... 1.5 W |
| rohs status | Following EU Directive 2011/65/EU |
| actuator type | Rotary Handle |
| setting range | 0.25 ... 0.40 A |
| terminal type | Push-in Spring Terminals |
| kc certificate | https://library.abb.com/d/1SAA963002-1502 |
| cqc certificate | https://library.abb.com/d/CQC2017010307034621 |
| cul certificate | https://library.abb.com/d/cUL_E137861 |
| cur certificate | https://library.abb.com/d/cUL_E137861 |
| marketing video | https://library.abb.com/d/9AKK107991A4712, https://library.abb.com/d/2CDC131153V0201 |
| number of poles | 3 |
| pollution degree | 3 |
| rmrs certificate | https://library.abb.com/d/1SAA918000-0704 |
| rohs information | https://library.abb.com/d/1SAD938508-0188 |
| culus certificate | https://library.abb.com/d/cUL_E137861 |
| locked rotor amps | (120 V AC) Single Phase 2.4 A(220 ... 240 V AC) Single Phase 2.4 A |
| mounting position | 1 ... 6 |
| e-number (finland) | 3709080 |
| i2t characteristic | https://library.abb.com/d/1SAM300517F0001 |
| rated frequency (f) | Main Circuit 50 HzMain Circuit 60 Hz |
| degree of protection | Housing IP20Main Circuit Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| electrical durability | 50000 cycle |
| mechanical durability | 100000 cycle |
| wire stripping length | Main Circuit 12 mm |
| ambient air temperature | Around the Enclosure 0 ... +40 °COperation -25 ... +70 °COperation Compensated -25 ... +60 °CStorage -50 ... +80 °C |
| full load amps motor use | (120 V AC) Single Phase 0.4 A(220 ... 240 V AC) Single Phase 0.4 A |
| environmental information | https://library.abb.com/d/1SAC200049H0009 |
| minimum mounting distance | Electrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 9 mmOther Device Same Type, Vertical 150 mm |
| rated operational voltage | Main Circuit 690 V AC |
| object classification code | F |
| contact position indication | ON / OFF / TRIP |
| rated insulation voltage (ui) | 690 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD101100-3404 |
| rated operational current (ie) | 0.4 A |
| declaration of conformity - ccc | https://library.abb.com/d/2020980307004600 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 0.5 ... 4 mm2Flexible with Insulated Ferrule 1x 0.5 ... 4 mm2Flexible with Insulated Ferrule 2x 0.5 ... 2.5 mm2Flexible 1/2x 0.75 ... 4 mm2Solid 1/2x 1 ... 2.5 mm2Stranded 1/2x 1 ... 6 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD201100-3404 |
| maximum operating voltage ul/csa | Main Circuit 600 V AC |
| data sheet, technical information | https://library.abb.com/d/2CDC131058D0201 |
| time-current characteristic curve | https://library.abb.com/d/1SAM300535F0103 |
| idea granular category code (igcc) | 4813 >> Circuit breakers |
| short-circuit current rating (sccr) | Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA |
| ambient air temperature compensation | Yes |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 6 kV |
| connecting capacity main circuit ul/csa | Stranded 1/2x 18-10 AWGStranded 1x 8 AWG |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 25g |
| conventional free-air thermal current (ith) | Main Circuit 0.4 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 3 ... 150 Hz |
| rated service short-circuit breaking capacity (ics) | (230 V AC) 100 kA(400 V AC) 100 kA |
| rated ultimate short-circuit breaking capacity (icu) | (400 V AC) 100 kA |
| rated instantaneous short-circuit current setting (ii) | 8 A |
