ABB

1SAM401920R1004

Name: 1SAM401920R1004
Brand: ABB
Availability: PreOrder

Product type: PS2-4-0-125

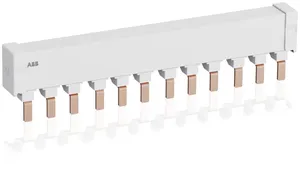

PS2-4-0-125 Busbar

Description

PS2-4-0-125 3-phase busbar for 4 MS165, Ie=125A

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SAM401920R1004.
ZWOD Vertriebs und Logistik GmbH carries 226480 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.226 KG / psc.
Commodity number	85366990
Country of origin	DE
Dimensions (WxHxD)	225x53x22 mm
EAN code	4013614502163
Product group
eclass	V11.0 : 27371306
etim 5	EC000215 - Phase busbar
etim 6	EC000215 - Phase busbar
etim 7	EC000215 - Phase busbar
etim 8	EC000215 - Phase busbar
unspsc	39121117
standards	IEC/EN 60947-4-1
rohs status	Following EU Directive 2011/65/EU
product name	Busbar
suitable for	MS165MO165
accessory type	3-Phase Busbar
accessory group	Electrical
connection type	Pin
number of phases	3
pollution degree	3
rohs information	https://library.abb.com/d/1SAD938502-0193
e-number (sweden)	3110213
degree of protection	IP20
ambient air temperature	Operation -25 ... +40 °CStorage -50 ... +80 °C
rated operational voltage	690 V AC
object classification code	W
suitable for product class	2:Manual Motor StartersManual Motor Starters
number of mountable devices	4
declaration of conformity - ce	https://library.abb.com/d/1SAD101100-3411
rated operational current (ie)	125 A
declaration of conformity - ukca	https://library.abb.com/d/1SAD201100-3411
maximum operating voltage ul/csa	Main Circuit 600 V AC
idea granular category code (igcc)	4378 >> Phase busbar
number of lateral auxiliary contacts	0
rated impulse withstand voltage (uimp)	8 kV
rated short-time withstand current low voltage (icw)	100 kA
