Product type: EF96-56

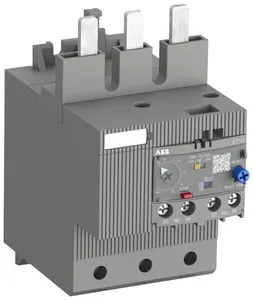

EF96-56 Electronic Overload Relay
Description
The EF96 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. Single mounting kits are available as accessory. The EF65, EF96 and EF146have ATEX and IECEx certification 1)1) ATEX is valid for products produced from week 42, 2014.IECEx is valid for products produced from week 15, 2017.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Electronic Overload Relays
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 3091508245 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SAX341001R1102.
- ZWOD Vertriebs und Logistik GmbH carries 221565 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.802 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | |
| Dimensions (WxHxD) | 70x132.7x105.2 mm |
| EAN code | 4013614527715 |
| Product group | SE |
| eclass | V11.0 : 27371502 |
| etim 5 | EC001080 - Electronic overload relay |
| etim 6 | EC001080 - Electronic overload relay |
| etim 7 | EC001080 - Electronic overload relay |
| etim 8 | EC001080 - Electronic overload relay |
| unspsc | 39121520 |
| standards | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1 |
| power loss | at Rated Operating Conditions per Pole 0.036 ... 0.282 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| suitable for | AF80AF96 |
| setting range | 20 ... 56 A |
| bv certificate | https://library.abb.com/d/1SAA941002-0201 |
| cb certificate | https://library.abb.com/d/1SAA942013-2001 |
| lr certificate | https://library.abb.com/d/1SAA941002-0501 |
| ul certificate | https://library.abb.com/d/E48139-19990512 |
| abs certificate | https://library.abb.com/d/1SAA941002-0102 |
| ccs certificate | https://library.abb.com/d/1SAA941001-0901 |
| cqc certificate | https://library.abb.com/d/CQC2013010309592132 |
| dnv certificate | https://library.abb.com/d/1SAA941003-0302 |
| eac certificate | https://library.abb.com/d/1SAA941003-2701 |
| number of poles | 3 |
| atex certificate | https://library.abb.com/d/1SAA941004-3901 |
| pollution degree | 3 |
| rina certificate | https://library.abb.com/d/RINA_ELE376813CS |
| rmrs certificate | https://library.abb.com/d/1SAA941001-0701 |
| rohs information | https://library.abb.com/d/1SAD938519-0180 |
| dimension diagram | https://library.abb.com/d/1SAX300406F0001 |
| e-number (sweden) | 3210246 |
| iecex certificate | https://library.abb.com/d/1SAA941000-4001 |
| mounting position | 1 ... 6 |
| tightening torque | Auxiliary Circuit 0.8 ... 1.2 N·mMain Circuit 6 N·m |
| e-number (finland) | 3709421 |
| rated frequency (f) | Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DCMain Circuit 50 HzMain Circuit 60 Hz |
| degree of protection | Main Circuit Terminals IP10 |
| contact rating ul/csa | (NC:) B600(NC:) Q600(NO:) B600(NO:) Q600 |
| wire stripping length | Auxiliary Circuit 9 mmMain Circuit 20 mm |
| ambient air temperature | Operation -25 ... +70 °COperation Compensated -25 ... +70 °CStorage -50 ... +85 °C |
| recommended screw driver | Auxiliary Circuit Pozidriv 2Main Circuit Pozidriv 2 |
| tightening torque ul/csa | Auxiliary Circuit 7 ... 1 in·lbMain Circuit 55 in·lb |
| environmental information | https://library.abb.com/d/1SAC200099H0001 |
| number of protected poles | 3 |
| rated operational voltage | Auxiliary Circuit 600 V AC/DCMain Circuit 1000 V AC |
| object classification code | F |
| rated insulation voltage (ui) | 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938519-0180 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980309000286 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 1 |
| connecting capacity main circuit | Flexible with Ferrule 2x 4 ... 35 mm2Flexible with Ferrule 1x 4 ... 50 mm2Flexible with Insulated Ferrule 2x 2 ... 35 mm2Flexible with Insulated Ferrule 1x 4 ... 50 mm2Flexible 1x 4 ... 50 mm2Flexible 2x 4 ... 35 mm2Rigid 1x 4 ... 70 mm2Rigid 2x 4 ... 35 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938502-1180 |
| maximum operating voltage ul/csa | Main Circuit 600 V AC |
| data sheet, technical information | https://library.abb.com/d/2CDC107041D0201 |
| time-current characteristic curve | https://library.abb.com/d/1SAX100509F0001, https://library.abb.com/d/1SAX100510F0001 |
| idea granular category code (igcc) | 5364 >> Overload relay |
| ambient air temperature compensation | Yes |
| rated operational current ac-15 (ie) | (240 V) NC 3 A(240 V) NO 3 A(400 V) NC 1.1 A(400 V) NO 1.1 A(500 V) NC 0.75 A(500 V) NO 0.75 A |
| rated operational current dc-13 (ie) | (125 V) NC 0.55 A(125 V) NO 0.5 A(24 V) NC 1.5 A(24 V) NO 1.5 A(250 V) NC 0.27 A(250 V) NO 0.27 A(60 V) NC 0.55 A(60 V) NO 0.55 A |
| connecting capacity auxiliary circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm2Flexible 1/2x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 4 mm2 |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Auxiliary Circuit 6 kVMain Circuit 8 kV |
| connecting capacity main circuit ul/csa | Flexible 1/2x 10-2 AWGStranded 1/2x 10-2 AWG |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 25g |
| conventional free-air thermal current (ith) | Auxiliary Circuit NC 6 AAuxiliary Circuit NO 6 A |
| connecting capacity auxiliary circuit ul/csa | Flexible 1/2x 18-10 AWGStranded 1/2x 18-10 AWG |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 3 ... 150 Hz |
