ABB
1SBL143560R5100
Product type: TAL9-22-00RT-51

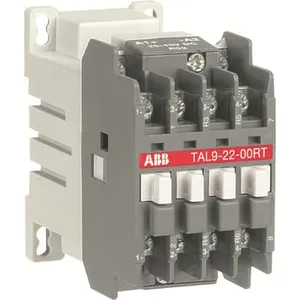

TAL9-22-00RT 17-32V DC Contactor
Description
TAL9 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC. The contactors can also be used for many other applications such lighting... The TAL..RT contactors are the Ring Tongue terminal version of the TAL... range. The TAL... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 2 N.O. + 2 N.C. main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. TAL... contactors are fitted with low consumption DC coils and offer a large coil voltage range.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SBL143560R5100.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.52 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | |
| Dimensions (WxHxD) | 44x78x97 mm |
| EAN code | 3471522362414 |
| Product group | SR |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 16 ... 27 msBetween Coil De-energization and NO Contact Opening 10 ... 17 msBetween Coil Energization and NC Contact Opening 20 ... 70 msBetween Coil Energization and NO Contact Closing 50 ... 100 ms |
| terminal type | Ring-Tongue Terminals |
| cqc certificate | https://library.abb.com/d/CQC2012010304534830 |
| csa certificate | https://library.abb.com/d/CSA_1041746 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B01010 |
| coil consumption | Holding DC (Umin / Umax) 2.5 / 8.5 WPull-in DC (Umin / Umax) 2.5 / 8.5 W |
| gost certificate | https://library.abb.com/d/GOST_POCCFRME77B07175 |
| rohs information | https://library.abb.com/d/1SBD250806U1000 |
| dimension diagram | https://library.abb.com/d/FPTE307902 |
| climatic withstand | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| mechanical durability | 10 million |
| ambient air temperature | Close to Contactor without Thermal O/L Relay (Ucmin-Ucmax) according to IEC 60077 -40 ... +70 °CClose to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air -40 ... 55 °C |
| environmental information | https://library.abb.com/d/1SBD250121E1004 |
| general use rating ul/csa | (600 V AC) 21 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 100 A |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 2 |
| number of main contacts no | 2 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250804U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001613 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Cable Lug 0.75 ... 2.5 mm2Rigid Cable 0.75 ... 2.5 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250821U1000 |
| short-circuit protective devices | gG Type Fuses 25 A |
| data sheet, technical information | https://library.abb.com/d/1SNC001003C0202 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated control circuit voltage (uc) | DC Operation 17 ... 32 V |
| rated operational current ac-1 (ie) | (690 V) 40 °C 25 A(690 V) 55 °C 22 A(690 V) 70 °C 18 A |
| connecting capacity auxiliary circuit | Rigid or Flexible with Cable Lug 0.75 ... 2.5 mm2 |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| resistance to shock acc. to iec 60068-2-27 | Closed, Shock Direction: A 20 gClosed, Shock Direction: B1 15 gClosed, Shock Direction: C1 20 gClosed, Shock Direction: C2 14 gOpen, Shock Direction: A 10 gOpen, Shock Direction: B1 5 gOpen, Shock Direction: C1 8 gOpen, Shock Direction: C2 8 gShock Direction: B2 10 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 26 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 100 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 26 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 50 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 60 A |
| connecting terminals (delivered in open position) main poles | M 3.5 (+,-) pozidriv 2 screw with conic washer |
