ABB

1SBN073452R2000

Name: 1SBN073452R2000
Brand: ABB
Availability: PreOrder

Product type: LK96-4F

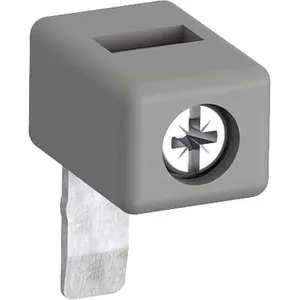

LK96-4F Terminals for Control Lead Connections

Description

LK96-4F Terminals for Control Lead Connections is designed to connect the control conductors to the main poles of the AF40..AF96 and derivates versions. The letter F means that the cable connection will be done on top of the auxiliary contact. LK96-4F are clipped into the slots placed above each power terminal connector. The LK96-4F are fitted with a pin designed to hold them in place until the connector has been fully clamped with its power cable.

Low Voltage Products and Systems
Control Products
Contactors
Block Contactors Accessories

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SBN073452R2000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.005 KG / psc.
Commodity number	85389099
Country of origin
Dimensions (WxHxD)	10.1x21x15 mm
EAN code	3471523131019
Product group	SB
cn8	8538 90 99
etim 7	EC002498 - Accessories for low-voltage switch technology
etim 8	EC002498 - Accessories/spare parts for low-voltage switch technology
unspsc	39120000
suitable for	AF40AF52AF65AF80AF96
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
ul certificate	https://library.abb.com/d/UL_20130301-E312527_14_1 COC 2020-05-26
weee b2c / b2b	Business To Business
rohs information	https://library.abb.com/d/1SBD250055U1000
tightening torque	Control Circuit 1.2 N·m
degree of protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
wire stripping length	10 mm
tightening torque ul/csa	Control Circuit 11 in·lb
environmental information	https://library.abb.com/d/1SBD250184E1000
declaration of conformity - ce	https://library.abb.com/d/1SBD250055U1000
declaration of conformity - ukca	https://library.abb.com/d/1SBD250057U1000
