ABB

1SBV016012R3801

Name: 1SBV016012R3801
Brand: ABB
Availability: PreOrder

Product type: LS21P12B11-U01

LS21P12B11-U01 Limit Switch

Datasheet

Description

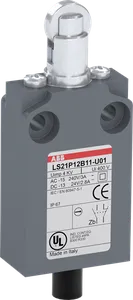

LS21P12B11-U01 is a 30 mm wide, compact Limit Switch made of fiber-glass reinforced UL-V0 material, with 2 mounting holes at the top, a prewired UL62 - PVC cable (1 m) on the bottom, steel roller plunger actuator and 1 N.O + 1 N.C snap action (Zb type) contacts

Low Voltage Products and Systems
Control Products
Sensors
Limit Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SBV016012R3801.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.127 KG / psc.
Commodity number	85364900
Country of origin	IT
Dimensions (WxHxD)	30x70x16 mm
EAN code	3471522641274
Product group	SF
eclass	V11.0 : 27272601
etim 6	EC000030 - End switch
etim 7	EC000030 - End switch
etim 8	EC000030 - End switch
unspsc	39121500
b10d value	20 Millions operations
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
actuator type	steel roller plunger
mounting type	30 mm
cqc certificate	https://library.abb.com/d/CQC2004010305127663
cul certificate	https://library.abb.com/d/9AKK107991A7379
housing material	Plastic
rohs information	https://library.abb.com/d/1SBD251097E1000
degree of protection	acc. to IEC 60529 IP67
mechanical durability	10 million
ambient air temperature	Operation -25 ... +70 °CStorage -40 ... +70 °C
object classification code	B
rated insulation voltage (ui)	acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V
declaration of conformity - ce	https://library.abb.com/d/1SBD250883U1000
declaration of conformity - ccc	https://library.abb.com/d/2020980305001785
declaration of conformity - ukca	https://library.abb.com/d/1SBD250886U1000
data sheet, technical information	https://library.abb.com/d/1SBC141160C0201
maximum mounted auxiliary contacts	1 NO, 1 NC
rated operational current ac-15 (ie)	(24 V) 10 A(130 V) 5.5 A(240 V) 3 A
rated operational current dc-13 (ie)	(24 V) 2.8 A(125 V) 0.55 A(250 V) 0.27 A
maximum electrical switching frequency	(AC-15) 3600 cycles per hour(DC-13) 3600 cycles per hour
number and type of bottom cable glands	Bottom (Prewired UL/IEC cable)
rated impulse withstand voltage (uimp)	4 kV
conventional free-air thermal current (ith)	acc. to IEC 60947-5-1, q = 40 °C 10 A
action type of the contact element (acc. to iec 60947-5-1)	Snap Action Simultaneous
