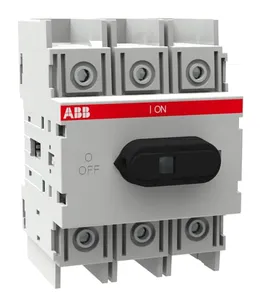

Weight | 0.36 KG / psc. |
Commodity number | 85365080 |
Country of origin | Finland (FI) |
Dimensions (WxHxD) | 100x70x74 mm |
EAN code | 6417019135410 |
Product group | FA |
eclass | V11.1 : 27371403 |
etim 5 | EC000216 - Switch disconnector |
etim 6 | EC000216 - Switch disconnector |
etim 7 | EC000216 - Switch disconnector |
etim 8 | EC000216 - Switch disconnector |
unspsc | 39122233 |
lock type | No |
standards | IEC 60947-3 |
power loss | at Rated Operating Conditions per Pole 6.3 W |
handle type | Handle and shaft not included |
rohs status | Following EU Directive 2011/65/EU |
mounting type | Base mounting |
terminal type | Screw Terminals |
weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
operating mode | Front operated |
number of poles | 3 |
pollution degree | 3 |
rohs information | https://library.abb.com/d/1SCC301168D2702 |
e-number (sweden) | 2102732 |
special functions | No |
tightening torque | acc. IEC 60947-1 6 N·m |
e-number (finland) | 3601253 |
cable cross-section | Cu 10 ... 70 mm2 |
degree of protection | Front IP20 |
mechanical durability | 20000 |
distance between phases | Standard |
environmental information | https://library.abb.com/d/1SCC301264D0201 |
rated operational voltage | Main Circuit 750 V |
object classification code | Q |
position of line terminals | Top In - Bottom OutBottom In - Top Out |
switches operating mechanism | Mechanism on Top of the Switch |
rated insulation voltage (ui) | acc. to IEC/EN 60664-1 750 V |
declaration of conformity - ce | https://library.abb.com/d/1SCC301168D2702 |
data sheet, technical information | https://library.abb.com/d/1SCC301020C0201 |
conventional thermal current (ithe) | Fully Enclosed 125 A |
rated operational power ac-23a (pe) | (220 ... 240 V) 22 kW(400 ... 415 V) 45 kW(500 V) 45 kW(690 V) 45 kW |
rated operational current ac-21a (ie) | (380 ... 415 V) 125 A |
rated operational current ac-22a (ie) | (380 ... 415 V) 125 A(500 V) 125 A(690 V) 125 A |
rated operational current ac-23a (ie) | (380 ... 415 V) 90 A(500 V) 70 A(690 V) 50 A |
rated impulse withstand voltage (uimp) | 8 kV |
rated short-circuit making capacity (icm) | (690 V) 3.6 kA |
conventional free-air thermal current (ith) | q = 40 °C 125 A |
rated conditional short-circuit current (inc) | (125 A fuse, 415 V) 50 kA(125 A fuse, 690 V) 10 kA(63 A fuse, 690 V) 50 kA |
rated short-time withstand current low voltage (icw) | for 1 s 2.5 kA |
