ABB

1SCA022759R9220

Product type: OS200D02P

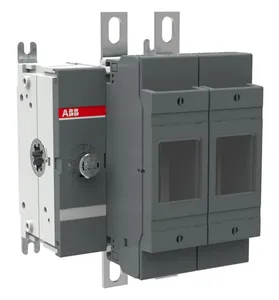

OS200D02P SWITCH FUSE

Description

Switch Fuses,Front Operated,2-pole,02 (Left Side),DIN,0,Handle and shaft included,
  • Low Voltage Products and Systems
  • Switches
  • Switch Fuses
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SCA022759R9220.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight2.4 KG / psc.
Commodity number85365080
Country of originFinland (FI)
Dimensions (WxHxD)133x199x149 mm
EAN code6417019247540
Product groupFA
eclassV11.1 : 27371401
etim 4EC001040 - Fuse switch disconnector
etim 5EC001040 - Fuse switch disconnector
etim 6EC001040 - Fuse switch disconnector
etim 7EC001040 - Fuse switch disconnector
etim 8EC001040 - Fuse switch disconnector
fuse sizeNH0
standardsIEC 60947-3
power lossat Rated Operating Conditions per Pole 17 W
fuse systemDIN
handle typePistol handle and shaft included
rohs statusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
mounting typeBase mounting
terminal typeLug terminals
weee category5. Small Equipment (No External Dimension More Than 50 cm)
operating modeFront Operated
terminal width20 mm
ccc certificatehttps://library.abb.com/d/CCC OS200-250 2016
eac certificatehttps://library.abb.com/d/EAC OT_OTDC_OTL_OTP_OTR_OTU_OTE_OETL_OESA_OESC_OTM_OS_OSM_.pdf
number of poles2
pollution degree3
rohs informationhttps://library.abb.com/d/1SCC011020D0201
reach declarationhttps://library.abb.com/d/1SCC011021D0201
tightening torque15 ... 22 N·m
dnv gl certificatehttps://library.abb.com/d/1SCC311123D0203
rated current (in)Main Circuit 200 A
rated operational voltageMain Circuit 690 V AC
object classification codeQ
position of line terminalsTop In - Bottom Out, Bottom In - Top Out
switches operating mechanism02 (Left Side)
rated insulation voltage (ui)1000 V
declaration of conformity - cehttps://library.abb.com/d/1SCC311091D2704
data sheet, technical informationhttps://library.abb.com/d/1SCC311013C0201
conventional thermal current (ithe)Fully Enclosed 200 A
rated operational power ac-23a (pe)(220 ... 240 V) 60 kW(400 V) 110 kW(415 V) 110 kW(500 V) 132 kW(690 V) 200 kW
rated operational current ac-21a (ie)(500 V) 200 A(690 V) 200 A
rated operational current ac-22a (ie)(380 ... 415 V) 200 A(500 V) 200 A(690 V) 200 A
rated operational current ac-23a (ie)(380 ... 415 V) 200 A(500 V) 200 A(690 V) 200 A
rated impulse withstand voltage (uimp)12 kV
conventional free-air thermal current (ith)q = 40 °C 200 A
rated conditional short-circuit current (inc)(690 V) 80 kA
rated short-time withstand current low voltage (icw)for 1 s 8 kiloampere rms
