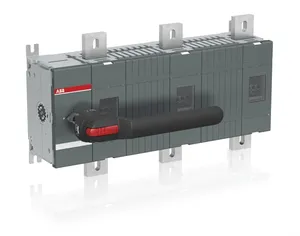

Weight | 19.5 KG / psc. |
Commodity number | 85365080 |
Country of origin | Finland (FI) |
Dimensions (WxHxD) | 544.5x306x145.5 mm |
EAN code | 6417019338699 |
Product group | FA |
eclass | V11.1 : 27371403 |
etim 5 | EC000216 - Switch disconnector |
etim 6 | EC000216 - Switch disconnector |
etim 7 | EC000216 - Switch disconnector |
etim 8 | EC000216 - Switch disconnector |
lock type | Yes |
standards | IEC 60947-3 |
power loss | at Rated Operating Conditions per Pole 29 W |
handle type | Handle and shaft included |
rohs status | Following EU Directive 2011/65/EU |
handle color | Black |
mounting type | Base mounting |
terminal type | Lug terminals |
weee category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
operating mode | Front operated |
terminal width | 50 mm |
number of poles | 3 |
pollution degree | 3 |
rohs information | https://library.abb.com/d/1SCC301155D2704 |
special functions | Wide phase distance 185 |
tightening torque | acc. IEC 60947-1 50 ... 75 N·m |
dnv gl certificate | https://library.abb.com/d/1SCC301184D0203 |
e-number (finland) | 3661694 |
mechanical drawings | https://library.abb.com/d/1SCC301927F0001, https://library.abb.com/d/1SCC301926F0001, https://library.abb.com/d/OT1250E03W8.igs |
degree of protection | Front IP00 |
mechanical durability | 6000 |
distance between phases | Phase distance 185 mm |
environmental information | https://library.abb.com/d/1SCC301233D0201 |
rated operational voltage | Main Circuit 1000 V |
object classification code | Q |
position of line terminals | Top In - Bottom OutBottom In - Top Out |
switches operating mechanism | Mechanism at the End of the Switch03 (Left Side) |
rated insulation voltage (ui) | acc. to IEC/EN 60664-1 1000 V |
declaration of conformity - ce | https://library.abb.com/d/1SCC301155D2704 |
data sheet, technical information | https://library.abb.com/d/1SCC301020C0201 |
conventional thermal current (ithe) | Fully Enclosed 1250 A |
rated operational power ac-23a (pe) | (400 ... 415 V) 710 kW(500 V) 900 kW(690 V) 1200 kW |
rated operational current ac-21a (ie) | (380 ... 415 V) 1250 A(500 V) 1250 A(690 V) 1250 A(1000 V) 1250 A |
rated operational current ac-22a (ie) | (380 ... 415 V) 1250 A(500 V) 1250 A(690 V) 1250 A |
rated operational current ac-23a (ie) | (380 ... 415 V) 1250 A(500 V) 1250 A(690 V) 1250 A |
rated impulse withstand voltage (uimp) | 12 kV |
rated short-circuit making capacity (icm) | (690 V) 110 kA |
conventional free-air thermal current (ith) | q = 40 °C 1250 A |
rated conditional short-circuit current (inc) | (1250 A fuse, 415 V) 80 kA(1250 A fuse, 500 V) 100 kA |
rated short-time withstand current low voltage (icw) | for 1 s 50 kA |
