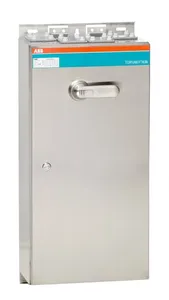

OT315ESUR3TZ Safety switch

Datasheet

Description

Safety switch, 3-p. 415V AC23 315A, 160kW. Mounted auxiliary contact: 2NO1NC. Stainless steel enclosure. IP65. StainlessSteel Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure and handle of the OT series is made of rigid acid proof steel, class AISI316L. The enclosure has a hinged door, with door lock. The cover is interlocked, and can not be opened when switch is on. The interlock function can be defeated for thermographing. The cover has also a gas pressure releaf function, to protect the user in case of internal arc. Suitable for outdoor and indoor use. The cable entries holes are prepared for cable flanges. The cable flanges (KOT61007 or KOT62296 (for EMC)) and the covers for the holes (KOT61008), have to be bought separately. The switch can be used in EMC applications, if EMC ring flanges are used. PE terminals and auxiliary contacts are included.

Low Voltage Products and Systems
Enclosed Switches
Enclosed Safety Switches
Enclosed Safety Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SCA102317R1001.
ZWOD Vertriebs und Logistik GmbH carries 226480 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	32.75 KG / psc.
Commodity number	85363090
Country of origin	FI
Dimensions (WxHxD)	400x800x230 mm
EAN code	6417019371061
Product group	FA
eclass	V11.1 : 27371403
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
standards	IEC 60947-1, -3
power loss	at Rated Operating Conditions per Pole 6.5 W
handle type	Pistol handle
rohs status	Following EU Directive 2011/65/EU
handle color	Stainless Steel
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
number of poles	3
pollution degree	3
rohs information	https://library.abb.com/d/1SCC340075D0201
e-number (sweden)	3135035
reach declaration	https://library.abb.com/d/1SCC340076D0201
special functions	EMC
e-number (finland)	3642117
enclosure material	Stainless steel
mechanical drawings	https://library.abb.com/d/OTRK804023PBL4R.stp
cable entry position	Down/Down
degree of protection	acc. to IEC 60529 IP65
cable outlets per side	Blank / 4xring-flange+ø25.5mm
impact resistance rating	Housing IK09
rated operational voltage	Main Circuit 1000 V
mounted auxiliary contacts	2 NO, 1 NC
object classification code	Q
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 1000 V
declaration of conformity - ce	https://library.abb.com/d/1SCC340025D2704
number of auxiliary contacts nc	1
number of auxiliary contacts no	2
connecting capacity main circuit	Hole Diameter 10 mmScrew Clamp / PE Terminal 4pc,25 ... 120 mm2
data sheet, technical information	https://library.abb.com/d/1SCC340015C0201
maximum mounted auxiliary contacts	2 NO, 1 NC
conventional thermal current (ithe)	Fully Enclosed 315 A
rated operational power ac-23a (pe)	(380 ... 415 V) 160 kW(500 V) 200 kW(690 V) 250 kW
rated operational current ac-22a (ie)	(380 ... 415 V) 315 A(500 V) 315 A(690 V) 315 A
rated operational current ac-23a (ie)	(380 ... 415 V) 315 A(500 V) 315 A(690 V) 315 A
rated short-circuit making capacity (icm)	(1000 V AC) 65 kA
rated conditional short-circuit current (inc)	61.5 kA
rated short-time withstand current low voltage (icw)	for 1 s 15 kA
