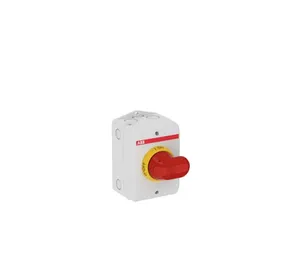

Weight | 0.66 KG / psc. |
Commodity number | 85363010 |
Country of origin | Mexico (MX) |
Dimensions (WxHxD) | 100x161.4x81 mm |
EAN code | 6417019384726 |
Product group | FA |
etim 5 | EC000216 - Switch disconnector |
etim 6 | EC000216 - Switch disconnector |
etim 7 | EC000216 - Switch disconnector |
etim 8 | EC000216 - Switch disconnector |
unspsc | 39122233 |
standards | IEC 60947-1, -3 / UL 508 |
handle type | Pistol handle |
handle color | Red / Yellow |
terminal type | Screw Terminals |
weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
enclosure type | NEMA Type 4/4X Watertight |
number of poles | 3 |
pollution degree | 3 |
tightening torque | acc. IEC 60947-1 0.8 N·m |
enclosure material | Plastic |
mechanical drawings | https://library.abb.com/d/EOTK4161081P25.igs |
ampere rating ul/csa | 16 A |
cable entry position | Up/Down |
degree of protection | acc. to IEC 60529 IP65 |
mechanical durability | 20000 |
cable outlets per side | 2x(ø1 / 25.4+ø0.75 / 19.1) |
horsepower rating ul/csa | (220 ... 240 V AC) Three Phase 5 Hp(480 V AC) 10 Hp(600 V AC) 10 Hp |
tightening torque ul/csa | Main Circuit 7 in·lb |
rated operational voltage | Main Circuit 750 V |
mounted auxiliary contacts | 1 NO, 0 NC |
object classification code | Q |
position of line terminals | Top In - Bottom Out |
rated insulation voltage (ui) | acc. to IEC/EN 60664-1 750 V |
declaration of conformity - ce | https://library.abb.com/d/1CC340035D2701 |
connecting capacity main circuit | Screw Clamp 0.75...10 mm2Screw Clamp / PE Terminal 1pcs, 0.5...16 mm2 |
maximum operating voltage ul/csa | 600 V |
data sheet, technical information | https://library.abb.com/d/1SCC340016C0201 |
conventional thermal current (ithe) | 16 A |
rated operational current ac-22a (ie) | (380 ... 415 V) 16 A(690 V) 16 A |
rated operational current ac-23a (ie) | (690 V) 16 A(690 V) 380415V10 A |
rated short-circuit making capacity (icm) | (690 V AC) 0.71 kA |
rated short-time withstand current low voltage (icw) | for 1 s 0.5 kA |
