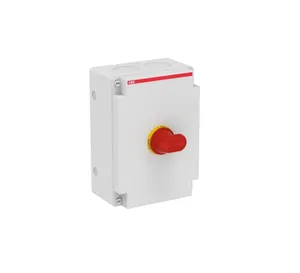

EOT63U3P3-P1 Enclosed Disconnect Switch

Datasheet

Description

Enclosed Switch Disconnector, 3-p. Max. Horse power rating at three phase 480V 40HP. General purpose current rating 80A. Plastic enclosure, NEMA Type 3R Rainproof, 12 Indoor, Pistol handle. Interlocked cover. Defeatable interlocking.

Low Voltage Products and Systems
Enclosed Switches
Enclosed Disconnect Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SCA104280R1001.
ZWOD Vertriebs und Logistik GmbH carries 226480 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	2.11 KG / psc.
Commodity number	85363030
Country of origin	MX
Dimensions (WxHxD)	210x300x136 mm
EAN code	6417019384832
Product group	FA
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
unspsc	39122233
standards	IEC 60947-1, -3 / UL 508
handle type	Pistol handle
handle color	Red / Yellow
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
enclosure type	NEMA Type 3R Rainproof, 12 Indoor
number of poles	3
pollution degree	3
tightening torque	acc. IEC 60947-1 2 N·m
enclosure material	Plastic
mechanical drawings	https://library.abb.com/d/EOTK3302113P31.igs
ampere rating ul/csa	80 A
cable entry position	Up/Down
degree of protection	acc. to IEC 60529 IP65
mechanical durability	20000
cable outlets per side	2x(ø1.25 / 31.75+ø1 / 25.4)
horsepower rating ul/csa	(220 ... 240 V AC) Three Phase 20 Hp(480 V AC) 40 Hp(600 V AC) 40 Hp
tightening torque ul/csa	Main Circuit 18 in·lb
mounted auxiliary contacts	0 NO, 0 NC
object classification code	Q
position of line terminals	Top In - Bottom Out
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 750 V
declaration of conformity - ce	https://library.abb.com/d/1CC340035D2701
connecting capacity main circuit	Screw Clamp 1.5 ... 35 mm2Screw Clamp / PE Terminal 2pcs, 4 ... 25 mm2
maximum operating voltage ul/csa	600 V
data sheet, technical information	https://library.abb.com/d/1SCC340016C0201
conventional thermal current (ithe)	80 A
rated operational current ac-22a (ie)	(380 ... 415 V) 80 A(690 V) 80 A
rated operational current ac-23a (ie)	(690 V) 75 A(690 V) 380415V20 A
rated short-circuit making capacity (icm)	(690 V AC) 1.4 kA
rated short-time withstand current low voltage (icw)	for 1 s 1 kA
