Product type: OT63FT4N2

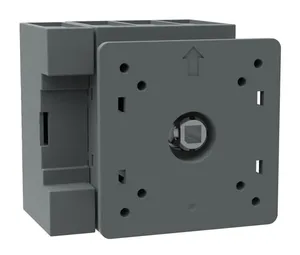

OT63FT4N2 SWITCH-DISCONNECTOR

Description

4-pole, front operated, door mounted switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle is not included
  • Low Voltage Products and Systems
  • Switches
  • Switch Disconnectors
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SCA105393R1001.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.32 KG / psc.
Commodity number85365080
Country of originFinland (FI)
Dimensions (WxHxD)65x72x69 mm
EAN code6417019393285
Product groupFA
eclassV11.1 : 27371403
etim 5EC000216 - Switch disconnector
etim 6EC000216 - Switch disconnector
etim 7EC000216 - Switch disconnector
etim 8EC000216 - Switch disconnector
unspsc39122233
lock typeNo
standardsIEC 60947-3 / UL 508 / CSA C22.2 No. 14
power lossat Rated Operating Conditions per Pole 2.8 W
handle typeHandle and shaft not included
rohs statusFollowing EU Directive 2011/65/EU
mounting typeDoor mounting
terminal typeScrew Terminals
weee category5. Small Equipment (No External Dimension More Than 50 cm)
operating modeFront operated
ul certificatehttps://library.abb.com/d/cULus certificate OT16-80
number of poles4
fourth pole typeSwitched - Simultaneous Function
pollution degree3
rohs informationhttps://library.abb.com/d/1SCC301167D2704
e-number (sweden)3171085
special functionsNo
tightening torqueacc. IEC 60947-1 2 N·m
e-number (finland)3601456
cable cross-sectionCu 1.5 ... 35 mm2
mechanical drawingshttps://library.abb.com/d/1SCC301456F0001, https://library.abb.com/d/1SCC301455F0001, https://library.abb.com/d/OT63-80FT4N2
ampere rating ul/csa60 A
degree of protectionFront IP20
fourth pole positionRight Side
mechanical durability20000
distance between phasesStandard
horsepower rating ul/csa(110 ... 120 V AC) Single Phase 2 Hp(240 V AC) Single Phase 7.5 Hp(440 ... 480 V AC) Single Phase 15 Hp(550 ... 600 V AC) Single Phase 15 Hp(220 ... 240 V AC) Three Phase 15 Hp(440 ... 480 V AC) Three Phase 30 Hp(550 ... 600 V AC) Three Phase 30 Hp
tightening torque ul/csa18 in·lb
environmental informationhttps://library.abb.com/d/1SCC301263D0201
rated operational voltageMain Circuit 750 V
object classification codeQ
position of line terminalsTop In - Bottom OutBottom In - Top Out
switches operating mechanismMechanism on Top of the Switch
rated insulation voltage (ui)acc. to IEC/EN 60664-1 750 V
declaration of conformity - cehttps://library.abb.com/d/1SCC301167D2704
maximum operating voltage ul/csa600 V
data sheet, technical informationhttps://library.abb.com/d/1SCC301020C0201
conventional thermal current (ithe)Fully Enclosed 63 A
rated operational power ac-23a (pe)(220 ... 240 V) 11 kW(400 ... 415 V) 22 kW(500 V) 22 kW(690 V) 15 kW
rated operational current ac-21a (ie)(380 ... 415 V) 63 A(500 V) 63 A(690 V) 63 A
rated operational current ac-22a (ie)(380 ... 415 V) 63 A(500 V) 63 A(690 V) 63 A
rated operational current ac-23a (ie)(380 ... 415 V) 63 A(500 V) 45 A(690 V) 20 A
rated impulse withstand voltage (uimp)8 kV
rated short-circuit making capacity (icm)(690 V) 2.1 kA
conventional free-air thermal current (ith)q = 40 °C 63 A
rated conditional short-circuit current (inc)(100 A fuse, ≤415 V) 50 kA(100 A fuse, 500 V) 100 kA(80 A fuse, 690 V) 50 kA
rated short-time withstand current low voltage (icw)for 1 s 1.5 kA
