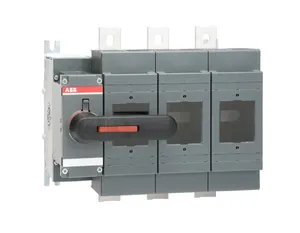

Weight | 13 KG / psc. |
Commodity number | 85365080 |
Country of origin | Finland (FI) |
Dimensions (WxHxD) | 343x306x233 mm |
EAN code | 6417019419701 |
Product group | FA |
eclass | V11.1 : 27371401 |
etim 4 | EC001040 - Fuse switch disconnector |
etim 5 | EC001040 - Fuse switch disconnector |
etim 6 | EC001040 - Fuse switch disconnector |
etim 7 | EC001040 - Fuse switch disconnector |
etim 8 | EC001040 - Fuse switch disconnector |
fuse size | NH3 |
standards | IEC 60947-3 |
power loss | at Rated Operating Conditions per Pole 65 W |
fuse system | DIN |
handle type | Direct mounted handle included |
rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
mounting type | Base mounting |
terminal type | Lug terminals |
weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
operating mode | Front Operated |
terminal width | 39 mm |
ccc certificate | https://library.abb.com/d/CCC OS630-800 2016 |
eac certificate | https://library.abb.com/d/EAC OT_OTDC_OTL_OTP_OTR_OTU_OTE_OETL_OESA_OESC_OTM_OS_OSM_.pdf |
number of poles | 3 |
pollution degree | 3 |
rohs information | https://library.abb.com/d/1SCC311112D2704 |
tightening torque | 50 ... 75 N·m |
dnv gl certificate | https://library.abb.com/d/1SCC311131D0202 |
rated current (in) | Main Circuit 800 A |
cable cross-section | 2.5 ... 25 mm2 |
rated operational voltage | Main Circuit 690 V AC |
object classification code | Q |
position of line terminals | Top In - Bottom Out, Bottom In - Top Out |
switches operating mechanism | 03 (Left Side) |
rated insulation voltage (ui) | 1000 V |
declaration of conformity - ce | https://library.abb.com/d/1SCC311112D2704 |
data sheet, technical information | https://library.abb.com/d/1SCC311013C0201 |
conventional thermal current (ithe) | Fully Enclosed 720 A |
rated operational power ac-23a (pe) | (220 ... 240 V) 250 kW(400 V) 450 kW(415 V) 450 kW(500 V) 560 kW(690 V) 710 kW |
rated operational current ac-21a (ie) | (500 V) 800 A(690 V) 800 A |
rated operational current ac-22a (ie) | (380 ... 415 V) 800 A(500 V) 800 A(690 V) 800 A |
rated operational current ac-23a (ie) | (380 ... 415 V) 800 A(500 V) 800 A(690 V) 800 A |
rated impulse withstand voltage (uimp) | 12 kV |
conventional free-air thermal current (ith) | q = 40 °C 800 A |
rated conditional short-circuit current (inc) | (690 V) 80 kA |
rated short-time withstand current low voltage (icw) | for 1 s 18 kiloampere rms |
