ABB

1SCA117334R1001

Name: 1SCA117334R1001
Brand: ABB
Availability: PreOrder

Product type: OT2000U22

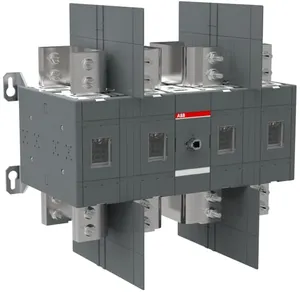

OT2000U22 SWITCH-DISCONNECTOR

Description

4-pole, front operated, base mounted non-fusible diconnect switch, handle and shaft are not included, terminal bolt kit included

Low Voltage Products and Systems
Switches
Switch Disconnectors

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SCA117334R1001.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	68.9 KG / psc.
Commodity number	85365080
Country of origin	FI
Dimensions (WxHxD)	615x546x415 mm
EAN code	6417019493435
Product group	FA
eclass	V11.1 : 27371403
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
lock type	No
standards	UL 98 / CSA C22.2 NO.4
power loss	at Rated Operating Conditions per Pole 96 W
handle type	Handle and shaft not included
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
ampere rating	2000 A
mounting type	Base mounting
terminal type	Lug terminals
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
operating mode	Front operated
ul certificate	https://library.abb.com/d/cULus certificate OT1600-2000
cul certificate	https://library.abb.com/d/cULus certificate OT1600-2000
number of poles	4
vde certificate	https://library.abb.com/d/No certification needed
atex certificate	https://library.abb.com/d/No certification needed
fourth pole type	Switched - Simultaneous Function
pollution degree	3
rohs information	https://library.abb.com/d/1SCC011020D0201
reach declaration	https://library.abb.com/d/1SCC011021D0201
special functions	No
tightening torque	acc. IEC 60947-1 56 N·m
mechanical drawings	https://library.abb.com/d/OT1600-2000U22.stp
degree of protection	Front IP00
fourth pole position	Right Side
mechanical durability	2500
distance between phases	Standard
tightening torque ul/csa	500 in·lb
rated operational voltage	Main Circuit 1000 V
object classification code	Q
position of line terminals	Top In - Bottom OutBottom In - Top Out
switches operating mechanism	Mechanism Between the Poles22 (Between the Poles)
declaration of conformity - ce	https://library.abb.com/d/No declaration needed
maximum operating voltage ul/csa	600 V
rated impulse withstand voltage (uimp)	12 kV
rated short-time withstand current low voltage (icw)	for 1 s 50 kA
