1SCA123577R1001

Name: 1SCA123577R1001
Brand: ABB
Availability: PreOrder

Product type: OT250E22YP

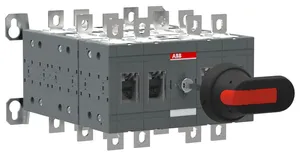

OT250E22YP BY-PASS SWITCH

Datasheet

Description

Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.

Low Voltage Products and Systems
Switches
Change-over and Transfer Switches
Manual bypass switches

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SCA123577R1001.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	6.05 KG / psc.
Commodity number	85365080
Country of origin	Finland (FI)
Dimensions (WxHxD)	229x150x236 mm
EAN code	6417019543611
Product group	FA
eclass	V11.1 : 27371403
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
power loss	6.5 W
handle type	Handle and shaft included
handle color	Black
mounting type	Base mounting
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
operating mode	Front operated
number of poles	4
transition type	Open
fourth pole type	Switched - Simultaneous Function
pollution degree	3
degree of protection	Front IP20
fourth pole position	Right Side
distance between phases	Standard
rated operational voltage	1000 V
object classification code	Q
position of line terminals	Top In - Bottom Out, Bottom In - Top Out
switches operating mechanism	Mechanism Between the Poles22 (Between the Poles)
rated insulation voltage (ui)	1000 V
declaration of conformity - ce	https://library.abb.com/d/1SCC301194D0202
data sheet, technical information	https://library.abb.com/d/1SCC303003C0201
conventional thermal current (ithe)	Fully Enclosed 250 A
rated operational power ac-23a (pe)	(380 ... 415 V) 140 kW(500 V) 170 kW(690 V) 250 kW
rated operational current ac-21a (ie)	(380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
rated operational current ac-22a (ie)	(380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
rated operational current ac-23a (ie)	(380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
rated impulse withstand voltage (uimp)	12 kV
conventional free-air thermal current (ith)	q = 40 °C 250 A
rated short-time withstand current low voltage (icw)	for 1 s 8 kiloampere rms
