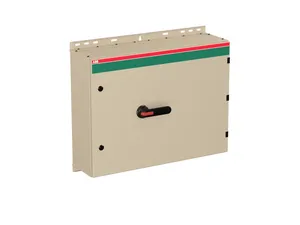

OT160EVLUU6BZ Encl. Switch Disconnector

Datasheet

Description

Encl. Switch Disconnector, 6-p. 415V AC23 160A, 88kW. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.

Low Voltage Products and Systems
Enclosed Switches
Enclosed Switch-Disconnectors
Enclosed Switch-Disconnectors

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SCA148021R1001.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	33.6 KG / psc.
Commodity number	85363090
Country of origin	Finland (FI)
Dimensions (WxHxD)	800x600x230 mm
EAN code	6417019773551
Product group	FA
eclass	V11.1 : 27371403
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
standards	IEC 60947-1, -3
handle type	Pistol handle
rohs status	Following EU Directive 2011/65/EU
handle color	Black
neutral type	Detachable neutral
terminal type	Bolt
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
enclosure type	MSC
number of poles	6
pollution degree	3
rohs information	https://library.abb.com/d/1SCC340075D0201
reach declaration	https://library.abb.com/d/1SCC340076D0201
tightening torque	6 N·m
enclosure material	Steel sheet
mechanical drawings	https://library.abb.com/d/OTKM608023PBL.stp
cable entry position	Up/Down
degree of protection	acc. to IEC 60529 IP65
cable outlets per side	Blank / Blank
impact resistance rating	Housing IK09
rated operational voltage	Main Circuit 1000 V
mounted auxiliary contacts	0 NO, 0 NC
object classification code	Q
position of line terminals	Top In - Bottom Out
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 1000 V
declaration of conformity - ce	https://library.abb.com/d/1SCC340001D2703
number of auxiliary contacts nc	0
number of auxiliary contacts no	0
connecting capacity main circuit	Hole Diameter 8 mmScrew Clamp / PE Terminal 8pc,10 ... 70 mm2
data sheet, technical information	https://library.abb.com/d/1SCC340015C0201
maximum mounted auxiliary contacts	2 NO, 2 NC
conventional thermal current (ithe)	Fully Enclosed 160 A
rated operational power ac-23a (pe)	(380 ... 415 V) 88 kW(500 V) 112 kW(690 V) 144 kW
rated operational current ac-22a (ie)	(380 ... 415 V) 160 A(690 V) 160 A
rated operational current ac-23a (ie)	(380 ... 415 V) 160 A(500 V) 160 A(690 V) 160 A
rated short-circuit making capacity (icm)	(1000 V AC) 30 kA
rated conditional short-circuit current (inc)	40.5 kA
rated short-time withstand current low voltage (icw)	for 1 s 8 kA
