ABB

1SCA151159R1001

Name: 1SCA151159R1001
Brand: ABB
Availability: PreOrder

Product type: OFAZ00S3L

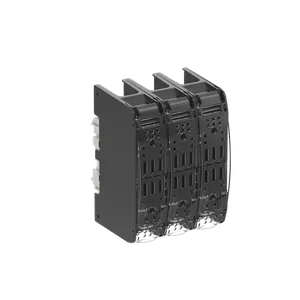

OFAZ00S3L FUSE BASE

Description

Fuse Base, Size 00, Full protection IP 20, 3-pole

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SCA151159R1001.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.553 KG / psc.
Commodity number	85389099
Country of origin	SI
Dimensions (WxHxD)	104x140x94 mm
EAN code	6417019814834
Product group	FA
eclass	V11.1 : 27142106
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000067 - Low Voltage HRC fuse base
etim 8	EC000067 - Low Voltage HRC fuse base
fuse size	NH000, NH00
standards	IEC
power loss	at Rated Operating Conditions per Pole 12 W
fuse system	DIN
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
mounting type	Baseplate
terminal type	Bolt
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
number of poles	3
pollution degree	3
rohs information	https://library.abb.com/d/1SCC011020D0201
e-number (sweden)	2300343
reach declaration	https://library.abb.com/d/1SCC011021D0201
special functions	IP20, full protection
tightening torque	acc. IEC 60947-1 10 N·m
e-number (finland)	3109914
rated current (in)	160 A
degree of protection	IP20
rated operational voltage	690 V AC
object classification code	F
rated insulation voltage (ui)	1000 V AC
declaration of conformity - ce	https://library.abb.com/d/1SCC316005D2701
data sheet, technical information	https://library.abb.com/d/1SCC316001K0201
rated impulse withstand voltage (uimp)	6 kV
