ABB
1SCA158266R1001
Product type: OTDC400F11K

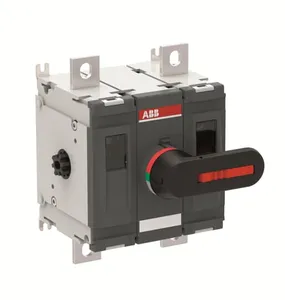

OTDC400F11K DC Switch-disconnector
Description
A fully optimized two-pole DC switch-disconnector for 1000V utility-scale photovoltaic power plants covering 315-630A current range. The new design offers both a size reduction and an increase in efficiency and performance.The two-pole 1000V DC Switch helps manufacturers improve system efficiency. Measuring just 150mm wide and 122mm high, the compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics for this particular OTDC type:Disconnect single PV circuit, Approved according to IEC 60947-1, -3
Read More
- Low Voltage Products and Systems
- Switches
- DC Switch-Disconnectors
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SCA158266R1001.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 3.8 KG / psc. |
| Commodity number | 85363090 |
| Country of origin | Finland (FI) |
| Dimensions (WxHxD) | 177.5x211x169.5 mm |
| EAN code | 6417019873718 |
| Product group | FA |
| eclass | V11.1 : 27371403 |
| etim 5 | EC000216 - Switch disconnector |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| standards | IEC 60947-1, -3 |
| power loss | at Rated Operating Conditions per Pole 12...13 W |
| handle type | Direct mounted handle |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| utilization | Photovoltaic |
| handle color | Black |
| shaft length | 160 mm6.3 in |
| handle length | 95 mm3.7 in |
| mounting type | Base mounting |
| terminal type | Lug terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| operating mode | Front Operated |
| shaft diameter | 12 mm0.47 in |
| terminal width | 30 mm1.2 in |
| wiring diagram | https://library.abb.com/d/1SCC301030K0201 |
| ccc certificate | https://library.abb.com/d/CQC2019010302206498 |
| number of poles | 2 |
| abb ecosolutions | Yes |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SCC301239D0201 |
| reach declaration | https://library.abb.com/d/1SCC301240D0201 |
| special functions | No |
| tightening torque | Cable Lug 30 ... 44 N·m |
| dnv gl certificate | https://library.abb.com/d/1SCC301231D0201 |
| last ordering date | 2022-11-30 All Countries |
| number of circuits | 1 |
| product frame size | M |
| mechanical drawings | https://library.abb.com/d/OTDC315-630FV11K_stp, https://library.abb.com/d/OTDC315-630FV11K_igs |
| degree of protection | Front IP20 |
| utilization category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B)Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - occasional actuation (DC-22B)Switching of single PV string(s) without reverse and overcurrents (DC-PV1)Switching of several PV string(s) with reverse and overcurrents (DC-PV2) |
| mechanical durability | 10000 cycle |
| connection configuration | Single circuit 2a, 2b |
| end of life instructions | https://library.abb.com/d/1SCC301112M0201 |
| rated operational voltage | 1000 V |
| object classification code | Q |
| position of line terminals | Top In - Bottom OutBottom In - Top Out |
| switches operating mechanism | Mechanism Between the Poles11 (Between the Poles) |
| rated insulation voltage (ui) | 1500 V |
| declaration of conformity - ce | https://library.abb.com/d/1SCC301227D2701 |
| group waste to landfill target | Non-hazardous waste sent to landfill, where alternative disposal method exists Achieved |
| declaration of conformity - ukca | https://library.abb.com/d/1SCC301313D0201 |
| rated operational current dc-22b | (1000 V) 400 A |
| rated operational current dc-pv1 | (1000 V) 400 A |
| rated operational current dc-pv2 | (1000 V) 400 A |
| data sheet, technical information | https://library.abb.com/d/1SCC301022C0201 |
| conventional thermal current (ithe) | Fully Enclosed 400 A |
| rated operational current dc-21b (ie) | (1000 V) 400 A |
| rated impulse withstand voltage (uimp) | 12 kV |
| environmental product declaration - epd | https://library.abb.com/d/1SCC301247D0201 |
| rated short-circuit making capacity (icm) | (1000 V DC) 10 kA |
| improved resource efficiency for customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market Achieved |
| conventional free-air thermal current (ith) | q = 40 °C 400 A |
| circular design principles recyclability rate | Design for Closing Resource Loops - Standard EN45555 59,09 % |
| rated short-time withstand current low voltage (icw) | (1500 V DC) 10 kAfor 1 s 10 kA |
| positive opening operation torque (direct opening action) | 11 ... 19 N·m |
