| Weight | 9.7 KG / psc. |
| Commodity number | 85362090 |
| Country of origin | |
| Dimensions (WxHxD) | 210x268x154 mm |
| EAN code | 8015644645014 |
| Product group | LA |
| eclass | V11.1 : 27370409 |
| etim 4 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 5 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 6 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| etim 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| unspsc | 39121100 |
| release | PR231/P-LS/I |
| version | F |
| sub-type | T7 |
| standards | IEC |
| power loss | at Rated Operating Conditions per Pole 19.3 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |

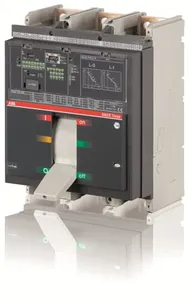

| product name | Moulded Case Circuit Breaker |
| release type | EL |
| suitable for | T7 |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| gl certificate | https://library.abb.com/d/1SDL000163R0055 |
| number of poles | 3 |
| rohs information | https://library.abb.com/d/9AKK108466A1424 |
| product main type | SACE Tmax T |
| reach declaration | https://library.abb.com/d/9AKK108466A1425 |
| rated current (in) | Main Circuit 800 A |
| electrical durability | 2000 cycle60 cycles per hour |
| mechanical durability | 10000 cycle60 cycles per hour |
| terminal connection type | Fixed Circuit-BreakersFront |
| environmental information | https://library.abb.com/d/9AKK10103A1059 |
| rated operational voltage | 690 V AC |
| object classification code | Q |
| suitable for product class | Moulded Case Circuit Breakers |
| rated insulation voltage (ui) | 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/9AKK106713A5537 |
| short-circuit performance level | S |
| rated uninterrupted current (iu) | 800 A |
| data sheet, technical information | https://library.abb.com/d/1SDC210015D0201 |
| rated impulse withstand voltage (uimp) | 8 kV |
| rated service short-circuit breaking capacity (ics) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
| rated short-time withstand current low voltage (icw) | for 1 s 20 kA |
| rated ultimate short-circuit breaking capacity (icu) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
