Weight | 1.3 KG / psc. |
Commodity number | 85362090 |
Country of origin | |
Dimensions (WxHxD) | 101.6x130x70 mm |
EAN code | 8015644021054 |
Product group | LA |
eclass | V11.1 : 27371403 |
etim 4 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
etim 5 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
etim 6 | EC000216 - Switch disconnector |
etim 7 | EC000216 - Switch disconnector |
etim 8 | EC000216 - Switch disconnector |
unspsc | 39120000 |
version | F |
sub-type | XT1 |
rohs date | NA |
standards | IEC |
rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
opening time | CB with SOR 15 msCB with UVR 15 ms |

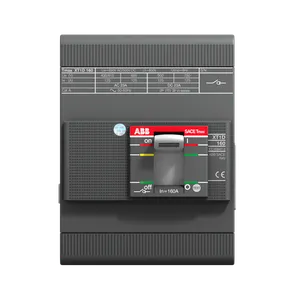

product name | Moulded Case Circuit Breaker |
brand / label | ABB |
weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
cb certificate | https://library.abb.com/d/9AKK107680A1266 |
order multiple | 1 piece |
ul certificate | https://library.abb.com/d/9AKK107680A7755 |
wiring diagram | https://library.abb.com/d/1SDM000068R0001 |
cqc certificate | https://library.abb.com/d/CQC2014010302740479, https://library.abb.com/d/CQC2015010302794768 |
eac certificate | https://library.abb.com/d/9AKK10103A1027 |
number of poles | 4 |
rohs information | https://library.abb.com/d/9AKK108466A1424 |
dimension diagram | https://library.abb.com/d/1SDC210099D0206 |
product main type | SACE Tmax XT |
reach declaration | https://library.abb.com/d/9AKK108466A1425 |
i2t characteristic | https://library.abb.com/d/1SDC210099D0206 |
rated frequency (f) | 50 / 60 Hz |
electrical durability | 120 cycles per hour8000 cycle |
mechanical durability | Nr. Operations 240 cycles per hourNr. Operations 25000 cycle |
order code us and canada | XT1DE4160DFF000XXX |
terminal connection type | Fixed Circuit-Breakers |
environmental information | https://library.abb.com/d/9AKK107991A8215 |
rated operational voltage | 690 V AC500 V DC |
object classification code | Q |
rated insulation voltage (ui) | 800 V |
declaration of conformity - ce | https://library.abb.com/d/9AKK106713A5532 |
declaration of conformity - ccc | https://library.abb.com/d/2020980302000850, https://library.abb.com/d/2020980302000817 |
short-circuit performance level | D |
rated uninterrupted current (iu) | 160 A |
data sheet, technical information | https://library.abb.com/d/1SDC210100D0206, https://library.abb.com/d/1SDC210099D0206 |
time-current characteristic curve | https://library.abb.com/d/1SDC210099D0206 |
rated impulse withstand voltage (uimp) | 8 kV |
rated short-time withstand current low voltage (icw) | for 1 s 2 kA |
