| Weight | 2.35 KG / psc. |
| Commodity number | 85362090 |
| Country of origin | |
| Dimensions (WxHxD) | 140x160x82.5 mm |
| EAN code | 8015644021092 |
| Product group | LA |
| eclass | V11.1 : 27371403 |
| etim 4 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 5 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 6 | EC000216 - Switch disconnector |
| etim 7 | EC000216 - Switch disconnector |
| etim 8 | EC000216 - Switch disconnector |
| unspsc | 39120000 |
| version | F |
| sub-type | XT4 |
| standards | IEC |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| opening time | CB with SOR 15 msCB with UVR 15 ms |

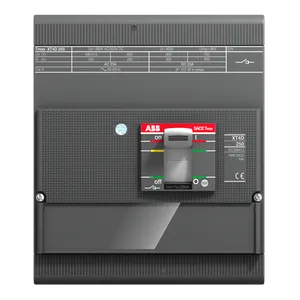

| product name | Moulded Case Circuit Breaker |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| order multiple | 1 piece |
| wiring diagram | https://library.abb.com/d/1SDM000068R0001 |
| number of poles | 4 |
| rohs information | https://library.abb.com/d/9AKK108466A1424 |
| product main type | SACE Tmax XT |
| reach declaration | https://library.abb.com/d/9AKK108466A1425 |
| rated voltage (ur) | 690 V |
| mechanical drawings | https://library.abb.com/d/1SDH000722R0100 |
| rated frequency (f) | 50 / 60 Hz |
| electrical durability | 120 cycles per hour8000 cycle |
| mechanical durability | 240 cycles per hour25000 cycle |
| order code us and canada | XT4DE4250DFF000XXX |
| terminal connection type | Fixed Circuit-Breakers |
| environmental information | https://library.abb.com/d/9AKK107991A8215 |
| rated operational voltage | 690 V AC500 V DC |
| object classification code | Q |
| rated insulation voltage (ui) | 800 V |
| declaration of conformity - ce | https://library.abb.com/d/9AKK106713A5529 |
| short-circuit performance level | D |
| rated uninterrupted current (iu) | 250 A |
| data sheet, technical information | https://library.abb.com/d/1SDC210100D0206, https://library.abb.com/d/1SDC210099D0206 |
| rated impulse withstand voltage (uimp) | 8 kV |
| rated short-time withstand current low voltage (icw) | for 1 s 3.6 kA |
