ABB

1SDA079696R1

Name: 1SDA079696R1
Brand: ABB
Availability: PreOrder

Product type: E1.2-A W FP 1200 3p HR HR

E1.2-A W FP 1200 3p HR HR

Description

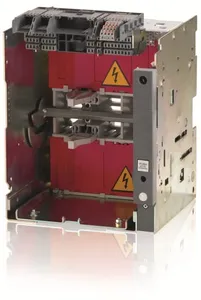

FIXED PART WITHDRAWABLE FOR C.BREAKER SACE EMAX2 E1.2-A 1200 THREE-POLE WITH REAR HORIZONTAL TERMINALS

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SDA079696R1.
ZWOD Vertriebs und Logistik GmbH carries 230020 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	21.7 KG / psc.
Commodity number	85389099
Country of origin
Dimensions (WxHxD)	278x363.5x281 mm
EAN code	8015644861193
Product group	LA
eclass	V11.1 : 27370422
etim 4	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
etim 5	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
etim 6	EC002043 - Chassis part power circuit breaker
etim 7	EC002043 - Chassis part power circuit breaker
etim 8	EC002043 - Chassis part power circuit breaker
version	W FP
sub-type	E1.2
standards	UL
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
current type	AC
product name	Fixed Part
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
number of poles	3
rohs information	https://library.abb.com/d/9AKK108466A1424
product main type	SACE Emax 2
reach declaration	https://library.abb.com/d/9AKK108466A1425
rated voltage (ur)	600 V
ampere rating ul/csa	1200 A
order code us and canada	Z1A12A0XX
terminal connection type	Rear flat Horizontal
rated operational voltage	600 V AC
rated insulation voltage (ui)	AC 635 V
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5546
rated uninterrupted current (iu)	1200 A
data sheet, technical information	https://library.abb.com/d/1SXU200040C0201
