1SDA100546R1

Name: 1SDA100546R1
Brand: ABB
Availability: PreOrder

Product type: XT5D 400 3p F F

XT5D 400 3p F F

DatasheetDatasheet

Description

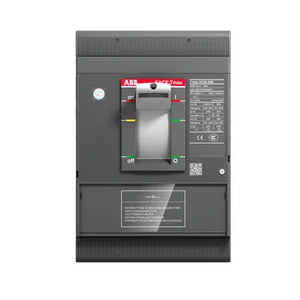

SWITCH-DISCONNECTOR TMAX XT5D 400 FIXED THREE-POLE WITH FRONT TERMINALS

Low Voltage Products and Systems
Circuit Breakers
Moulded Case Circuit Breakers
Tmax XT

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SDA100546R1.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	4.775 KG / psc.
Commodity number	85362090
Country of origin
Dimensions (WxHxD)	140x205x103.5 mm
EAN code	8056221006224
Product group	LA
eclass	V11.1 : 27371403
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
version	F
sub-type	XT5
rohs date	NA
standards	IEC 60947
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
product name	Moulded Case Circuit Breaker
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
order multiple	1 piece
wiring diagram	https://library.abb.com/d/1SDM000005A1001
number of poles	3
rohs information	https://library.abb.com/d/9AKK108466A1424
product main type	SACE Tmax XT
reach declaration	https://library.abb.com/d/9AKK108466A1425
mechanical drawings	https://library.abb.com/d/1SDH002011A1101
electrical durability	120 cycles per hour7000 cycle
mechanical durability	240 cycles per hour20000 cycle
order code us and canada	XT5DE340ADFF000XXX
terminal connection type	Fixed Circuit-Breakers
environmental information	https://library.abb.com/d/9AKK107991A8215
rated operational voltage	690 V AC750 V DC
object classification code	Q
rated insulation voltage (ui)	1000 V
declaration of conformity - ce	https://library.abb.com/d/9AKK107680A2824
rated uninterrupted current (iu)	400 A
data sheet, technical information	https://library.abb.com/d/1SDC210100D0206, https://library.abb.com/d/1SDC210099D0206
rated operational current ac-23a (ie)	(400 V) 400 A(690 V) 400 A
rated impulse withstand voltage (uimp)	8 kV
rated short-time withstand current low voltage (icw)	5 kA
