| Weight | 8.2 KG / psc. |
| Commodity number | 85389099 |
| Country of origin | |
| Dimensions (WxHxD) | 210x268x103.5 mm |
| EAN code | 8056221008426 |
| Product group | LA |
| eclass | V11.1 : 27370409 |
| etim 6 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| etim 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| version | F |
| sub-type | XT6 |
| standards | IEC 60947 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |

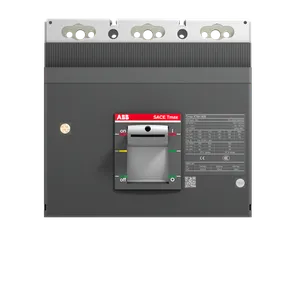

| product name | Moulded Case Circuit Breaker |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| order multiple | 1 piece |
| number of poles | 3 |
| rohs information | https://library.abb.com/d/9AKK108466A1424 |
| product main type | SACE Tmax XT |
| reach declaration | https://library.abb.com/d/9AKK108466A1425 |
| e-number (finland) | 3641887 |
| electrical durability | 120 cycles per hour5000 cycle |
| mechanical durability | 240 cycles per hour20000 cycle |
| terminal connection type | Fixed Circuit-Breakers |
| environmental information | https://library.abb.com/d/9AKK107991A8215 |
| rated operational voltage | 690 V AC750 V DC |
| object classification code | Q |
| rated insulation voltage (ui) | 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/9AKK107680A2825 |
| short-circuit performance level | N |
| rated uninterrupted current (iu) | 800 A |
| data sheet, technical information | https://library.abb.com/d/1SDC210100D0206, https://library.abb.com/d/1SDC210099D0206 |
| rated impulse withstand voltage (uimp) | 8 kV |
| rated service short-circuit breaking capacity (ics) | (220 V AC) 70 kA(230 V AC) 70 kA(240 V AC) 70 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(525 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 18 kA(500 V DC) 2 Poles in Series 10 kA(750 V DC) 3 Poles in Series 8 kA |
| rated short-time withstand current low voltage (icw) | 10 kA |
| rated ultimate short-circuit breaking capacity (icu) | (220 V AC) 70 kA(230 V AC) 70 kA(240 V AC) 70 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(525 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 20 kA(750 V DC) 3 Poles in Series 18 kA |
