ABB

1SEP204480R3717

Product type: XRG00-185/10-4P-ITS2.1-MOT

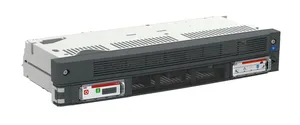

XRG00-185/10-4P-ITS2.1-MOT Switch disconnector fuse

Description

Four pole Switch Disconnector Fuse for 185mm busbar distance and 10mm busbar thickness, including Intelligent Tier Switch and motor
  • Low Voltage Products and Systems
  • Fusegear
  • Switch Disconnector Fuse
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SEP204480R3717.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight6.37 KG / psc.
Commodity number85363000
Country of originBulgaria (BG)
Dimensions (WxHxD)590x100x335 mm
EAN code3800161650109
Product groupDA
eclassV11.1 : 27371401
etim 6EC001040 - Fuse switch disconnector
etim 7EC001040 - Fuse switch disconnector
etim 8EC001040 - Fuse switch disconnector
fuse sizeNH00
rohs date20190927
standardsIEC60947-3
power lossat Rated Load 33 W
fuse systemDIN
rohs statusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
terminal typeBolt
weee category4. Large Equipment (Any External Dimension More Than 50 cm)
operating modeMotorized
number of poles4
rohs informationhttps://library.abb.com/d/1SCC011020D0201
busbar dimensionsThickness 10 mm
reach declarationhttps://library.abb.com/d/1SCC011021D0201
special functionsITS2.1
rated current (in)160 A
rated voltage (ur)500 V AC
mechanical drawingshttps://library.abb.com/d/9AKK107680A0373
degree of protectionacc. to IEC 60529 Front IP41
utilization categorySwitching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B)
distance between phases185 mm
rated operational voltage500 V AC
electronic fuse monitoringYes
rated insulation voltage (ui)1 kV
declaration of conformity - cehttps://library.abb.com/d/1SCC311166D2701
data sheet, technical informationhttps://library.abb.com/d/1SEC313002D0201
rated operational current ac-22b (ie)(500 V) 160 A
rated impulse withstand voltage (uimp)8 kV
