ABB

1SEP204480R7500

Name: 1SEP204480R7500
Brand: ABB
Availability: PreOrder

Product type: XRG00-50/10-3P

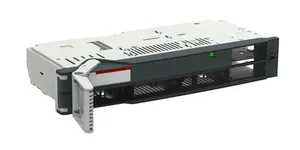

XRG00-50/10-3P Switch disconnector fuse

Datasheet

Description

Three pole Switch Disconnector Fuse for 50mm busbar distance and 10mm busbar thickness

Low Voltage Products and Systems
Fusegear
Switch Disconnector Fuse

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SEP204480R7500.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	3.81 KG / psc.
Commodity number	85363000
Country of origin	Bulgaria (BG)
Dimensions (WxHxD)	590x50x335 mm
EAN code	3800161650178
Product group	DA
eclass	V11.1 : 27371401
etim 6	EC001040 - Fuse switch disconnector
etim 7	EC001040 - Fuse switch disconnector
etim 8	EC001040 - Fuse switch disconnector
fuse size	NH00
rohs date	20190927
standards	IEC60947-3
power loss	at Rated Load 33 W
fuse system	DIN
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
terminal type	Bolt
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
operating mode	Manual
number of poles	3
rohs information	https://library.abb.com/d/1SCC011020D0201
busbar dimensions	Thickness 10 mm
reach declaration	https://library.abb.com/d/1SCC011021D0201
rated current (in)	160 A
rated voltage (ur)	690 V AC
degree of protection	acc. to IEC 60529 Front IP41
utilization category	Switching of motor loads or other highly inductive loads - frequent actuation (AC-23A)Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B)
distance between phases	50 mm
rated operational voltage	690 V AC
electronic fuse monitoring	No
rated insulation voltage (ui)	1 kV
declaration of conformity - ce	https://library.abb.com/d/1SCC311166D2701
data sheet, technical information	https://library.abb.com/d/1SEC313002D0201
rated operational current ac-22b (ie)	(500 V) 160 A(690 V) 125 A
rated operational current ac-23a (ie)	(500 V) 160 A(690 V) 125 A
rated impulse withstand voltage (uimp)	8 kV
