ABB

1SEP622203R3000

Name: 1SEP622203R3000
Brand: ABB
Availability: PreOrder

Product type: BZH1000A-T-3P-M12

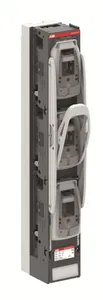

BZH1000A-T-3P-M12 Switch disconnector

DatasheetDatasheet

Description

Cu+ switch disconnectors are specially engineered to perform in surroundings with high ambient temperatures and are available as 1P and 3P variants.All Cu+ switch disconnectors have been tested and approved for performance exceeding the requirements of IEC60947-1 and IEC60947-3. Enabling use in ambient temperatures up to 55°C (131°F) without requiring derating, the switches can be applied with 100% of the rated current Ie.Cu+ switch disconnectors are available for 1000A – 2000A and are factory equipped with optimized fuse knives.InLine II Cu+ replaces the old range of SLBM and BSL switches 1:1.

Low Voltage Products and Systems
Fusegear
Fuse Switch Disconnectors
Inline II

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SEP622203R3000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	8 KG / psc.
Commodity number	85389099
Country of origin	BG
Dimensions (WxHxD)	99x662x207 mm
EAN code	3800161652820
Product group	DB
eclass	V11.1 : 27371401
etim 4	EC001040 - Fuse switch disconnector
etim 5	EC001040 - Fuse switch disconnector
etim 6	EC001040 - Fuse switch disconnector
etim 7	EC001040 - Fuse switch disconnector
etim 8	EC001040 - Fuse switch disconnector
fuse size	Solid link
rohs date	20201211
standards	IEC60947-3
power loss	at Rated Load 183.8 W
fuse system	DIN
handle type	3P
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
terminal type	Bolt
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
number of poles	3
rohs information	https://library.abb.com/d/1SCC011020D0201
reach declaration	https://library.abb.com/d/1SCC011021D0201
product frame size	High
rated current (in)	Main Circuit 1000 A
mechanical drawings	https://library.abb.com/d/9AKK107680A8030, https://library.abb.com/d/9AKK107991A5714, https://library.abb.com/d/9AKK107991A5715
degree of protection	Front IP30
distance between phases	185 mm
device type manager (dtm)	Switch disconnector
rated operational voltage	690 V AC
electronic fuse monitoring	No
rated insulation voltage (ui)	1000 V
declaration of conformity - ce	https://library.abb.com/d/1SEP500046P0001
data sheet, technical information	https://library.abb.com/d/1SEC312022B0201, https://library.abb.com/d/1SEC312023D0201
rated operational current ac-21b (ie)	(690 V) 1000 A(500 V) 1000 A
rated operational current ac-22b (ie)	(500 V) 1000 A
rated impulse withstand voltage (uimp)	Main Circuit 8 kV
rated short-circuit making capacity (icm)	20 kiloampere rms
rated short-time withstand current low voltage (icw)	(730 V AC) 20 kiloampere rmsfor 1 s 20 kiloampere rms
