ABB

1SFA611610R1111

Product type: MCB-11G

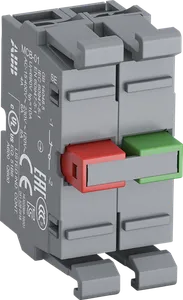

MCB-11G Contact Block

Description

The MCB-11G Contact Block is: - Non-illuminated - Gold plated double contact block - Front mounting - silver gold plated (Ag/Au) - 1 NO - 1NC - 690 VThis Contact Block is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.
  • Low Voltage Products and Systems
  • Control Products
  • Pilot Devices
  • Modular Plastic Range
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SFA611610R1111.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.026 KG / psc.
Commodity number8536901000
Country of originSE
Dimensions (WxHxD)0.02x0.044x0.028 m
EAN code7320500544402
Product groupSH
eclassV11.0 : 27371302
etim 6EC000041 - Auxiliary contact block
etim 7EC000041 - Auxiliary contact block
etim 8EC000041 - Auxiliary contact block
unspsc39121500
functionWithout holder
rohs date0635 4
power lossMaximum 5 W
rohs statusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
illuminationNon-illuminated
suitable for
mounting typeFront mounting
terminal typeScrew Terminals
weee category5. Small Equipment (No External Dimension More Than 50 cm)
cb certificatehttps://library.abb.com/d/SEMKO_SE30016M2
weee b2c / b2bBusiness To Business
connection typeScrew Clamp
cqc certificatehttps://library.abb.com/d/CQC2005010304154103
eac certificatehttps://library.abb.com/d/RU C-CN.ME77.B.01927
pollution degree3
rohs informationhttps://library.abb.com/d/2CMT2015-005452
culus certificatehttps://library.abb.com/d/UL-E76003-20140513
tightening torque0.9 N·m
dnv gl certificatehttps://library.abb.com/d/E-14107
connecting capacityFlexible with Ferrule 1 x 0.75...2.5 mm2Flexible with Ferrule 2 x 0.75...2.5 mm2Flexible with Insulated Ferrule 1 x 0.75...2.5 mm2Flexible with Insulated Ferrule 2 x 0.75...2.5 mm2Flexible 1 x 0.75 ... 2.5 mm2Flexible 2 x 0.75 ... 2.5 mm2Solid 1 x 0.75...2.5 mm2Solid 2 x 0.75...2.5 mm2
rated frequency (f)50 / 60 Hz
degree of protectionTerminals IP20
wire stripping length8 mm
ambient air temperatureOperation -25 ... +70 °CStorage -40 ... +85 °C
environmental informationhttps://library.abb.com/d/1SAC200074H0001
rated operational voltageMaximum 690 V
connecting capacity ul/csa1x 18...14 AWG2x 18...14 AWG
object classification codeS
suitable for product classPilot Devices
rated insulation voltage (ui)690 V
declaration of conformity - cehttps://library.abb.com/d/2CMT2015-005452
declaration of conformity - ccchttps://library.abb.com/d/2020980305001528
number of auxiliary contacts nc1
number of auxiliary contacts no1
data sheet, technical informationhttps://library.abb.com/d/1SFC151007C02__
rated operational current ac-15 (ie)(230 V AC) 6 A
rated operational current dc-13 (ie)(24 V) 5 A(125 V) 0.55 A
rated impulse withstand voltage (uimp)6 kV
