ABB

1SFA664002R1005

Name: 1SFA664002R1005
Brand: ABB
Availability: PreOrder

Product type: TVOC-2-H1

TVOC-2-H1 HMI

Datasheet

Description

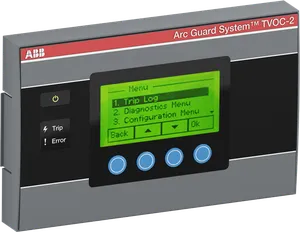

The TVOC-2-H1 is an HMI to be added to the TVOC-2 Arc Guard System Main unit if more than one HMI is needed. The added HMI can be added to the panel door for easier overview. The HMI is connected to the main unit by a 3 m cable with RJ45 connector that comes with the HMI unit. Accessories that comes with the unit are mounting nut, gasket and blank front label.

Low Voltage Products and Systems
Circuit Breakers
External Digital Unit
Arc Guard System

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SFA664002R1005.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.115 KG / psc.
Commodity number	85389099
Country of origin	SE
Dimensions (WxHxD)	130x82x27 mm
EAN code	7320500382189
Product group	SJ
eclass	V11.0 : 27142214
etim 4	EC001444 - Insulation and earth fault monitoring relay
etim 5	EC001444 - Insulation and earth fault monitoring relay
etim 6	EC002911 - Arc detection system
etim 7	EC002911 - Arc detection system
etim 8	EC002911 - Arc detection system
unspsc	39122331
rohs date	1009 1
power loss	1 W
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
product name	HMI
suitable for	TVOC-2
mounting type	Mounted on main unit or cabinet door
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
bv certificate	https://library.abb.com/d/39407_B1
ul certificate	https://library.abb.com/d/UL_20110511-E155370
csa certificate	https://library.abb.com/d/UL_20110511-E155370
dnv certificate	https://library.abb.com/d/DNV_E-12926
eac certificate	https://library.abb.com/d/9AKK106713A1450
rohs information	https://library.abb.com/d/2CMT005420
culus certificate	https://library.abb.com/d/UL_20110511-E155370
e-number (norway)	4116453
e-number (sweden)	2801706
product main type	TVOC-2
e-number (finland)	2712002
additional information	ARC MONITOR TVOC-2 HMI
ambient air temperature	Operation -25 ... +55 °CStorage -25 ... +55 °C
environmental information	https://library.abb.com/d/1SFC170003D0201
object classification code	B
declaration of conformity - ce	https://library.abb.com/d/2CMT005420
number of auxiliary contacts nc	0
number of auxiliary contacts no	0
data sheet, technical information	https://library.abb.com/d/1SFC170001C0201
number of auxiliary contacts co (spdt)	0
