Product type: PSR12-600-11

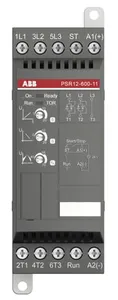

PSR12-600-11 Softstarter
Description
Contact Person |
---|
Thomas Hoffmann |
+49 305 201 4443 ext. 1 |
sales@zwodltd.com |
Payment |
---|
Worldwide shipping |
---|
Additional Information |
---|
Price: Please send request |
Request Lead Time: ca. 1-2 Days |
Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
Product Attribute | Attribute Value |
---|---|
Weight | 0.4 KG / psc. |
Commodity number | 85044090 |
Country of origin | CN |
Dimensions (WxHxD) | 114x140x45 mm |
EAN code | 7320500477175 |
Product group | SG |
eclass | V11.0 : 27370907 |
etim 4 | EC002572 - Electronic motor control and protection device |
etim 5 | EC002572 - Electronic motor control and protection device |
etim 6 | EC002572 - Motor management device |
unspsc | 39121521 |
ramp time | 0 ... 20 second [unit of time]1 ... 10 second [unit of time] |
rohs status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
communication | FiledBusPlug(Optional) |
terminal type | Screw Terminals |
cqc certificate | https://library.abb.com/d/CQC2006010304208085 |
rohs information | https://library.abb.com/d/1SFC132031D0202 |
run signal relay | Yes |
product main type | PSR12 |
tightening torque | Control Circuit 1 N·mMain Circuit 1 N·mSupply Circuit 1 N·m |
fault signal relay | No |
overload protection | Recommended MS132 10.00 ... 16.00 |
rated frequency (f) | 50/60 HzMain Circuit 50 / 60 Hz |
abb type designation | PSR12-600-11 |
by-pass signal relay | No |
degree of protection | IP20 |
overload signal relay | No |
current limit function | No |
ambient air temperature | Operation -25 ... +60 °CStorage -40 ... +70 °C |
global commercial alias | PSR12-600-11 |
tightening torque ul/csa | Control Circuit 8.9 in·lbMain Circuit 8.9Supply Circuit 8.9 in·lb |
environmental information | https://library.abb.com/d/1SFC132038D0201 |
rated operational voltage | 208 ... 600 V AC |
service factor percentage | 100 % |
object classification code | Q |
initial voltage during start | 40 ... 70 % |
declaration of conformity - ce | https://library.abb.com/d/2CMT004861 |
integrated electronic overload | No |
step down voltage special ramp | 100 ... 60 % |
declaration of conformity - ccc | https://library.abb.com/d/2020980304001087 |
connecting capacity main circuit | Rigid 1/2 x 0.75 ... 2.5 mm2 |
maximum operating voltage ul/csa | Main Circuit 600 V |
adjustable rated motor current ie | No |
data sheet, technical information | https://library.abb.com/d/1SFC132012C0201 |
rated control supply voltage (us) | 24 V AC/DC |
signal indication running r (led) | Green |
connecting capacity supply circuit | Rigid 1/2 x 0.75 ... 2.5 mm2 |
rated control circuit voltage (uc) | DC Operation 24 V |
switch for inside delta connection | No |
connecting capacity control circuit | 1 x 0.75 ... 2.52 x 0.75 ... 2.5 mm2Rigid 1/2 x 0.75 ... 2.5 mm2 |
signal indication ramping up/down (led) | Green |
signal indication completed start ramp (led) | Green |
starting capacity at maximum rated current ie | 4xIe for 6s |
rated operational power - in-line connection (pe) | (230 V) 3 kW(400 V) 5.5 kW(500 V) 5.5 kW |
signal indication ready to start/standby on (led) | Green |
rated operational current - in-line connection (ie) | 12 A |
number of starts per hour at 3.5*ie for 7 sec. 50% on time 50% off time | 10 |
