ABB
1SFA896213R7000
Product type: PSRC72-600-70

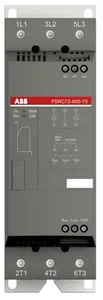

PSRC72-600-70 Softstarter
Description
The softstarter PSRC72-600-70 has a rated maximum operational current of 72 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...240 V AC at 50/60 Hz. PSRC features a two-phase control soft start through a voltage ramp. It has a built-in bypass for easy installation and energy saving. A RUN signal is available from a relay output in NO (normally open state). The PSRC softstarter range is a true plug-and-play with a fixed setting optimized for scroll compressors. PSRC is often combined with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSRC is fast and easy to install with fixed settings. Designed for scroll compressors results in less stress on the compressor reducing the maintenance cost to a minimum. The PSRC range are suitable for small three-phase motors with nominal currents from 3...105 A and can manage up to 100 starts per hour. Common applications are compressors.
Read More
- Drives
- Softstarters
- Softstarters
- PSR Softstarters
- PSRC72
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SFA896213R7000.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 2.1 KG / psc. |
| Commodity number | 85044090 |
| Country of origin | CN |
| Dimensions (WxHxD) | 180x220x70 mm |
| EAN code | 7320500465578 |
| Product group | SG |
| eclass | V11.0 : 27370907 |
| etim 4 | EC002572 - Electronic motor control and protection device |
| etim 5 | EC002572 - Electronic motor control and protection device |
| etim 6 | EC002572 - Motor management device |
| unspsc | 39121521 |
| ramp time | Fixed settingFixed setting |
| rohs status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| communication | FiledBusPlug(Optional) |
| terminal type | Main Circuit: Bars |
| cqc certificate | https://library.abb.com/d/CQC2008010304295498 |
| rohs information | https://library.abb.com/d/1SFC132031D0202 |
| run signal relay | Yes |
| product main type | PSRC72 |
| tightening torque | Control Circuit 0.6 N·mMain Circuit 8 N·mSupply Circuit 0.6 N·m |
| fault signal relay | No |
| overload protection | Recommended MS495 57 ... 75 |
| rated frequency (f) | 50/60 HzMain Circuit 50 / 60 Hz |
| abb type designation | PSRC72-600-70 |
| ampere rating ul/csa | 68 A |
| by-pass signal relay | Yes |
| degree of protection | IP10 |
| overload signal relay | No |
| current limit function | No |
| ambient air temperature | Operation -25 ... +60 °CStorage -40 ... +70 °C |
| global commercial alias | PSRC72-600-70 |
| tightening torque ul/csa | Control Circuit 5.3 in·lbMain Circuit 70.8Supply Circuit 5.3 in·lb |
| environmental information | https://library.abb.com/d/1SFC132038D0201 |
| rated operational voltage | 208 ... 600 V AC |
| service factor percentage | 100 % |
| object classification code | Q |
| initial voltage during start | Fixed setting |
| declaration of conformity - ce | https://library.abb.com/d/2CMT003878 |
| integrated electronic overload | No |
| step down voltage special ramp | Fixed setting |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001090 |
| connecting capacity main circuit | Rigid 2 x 0.75 ... 1.5 mm2 |
| maximum operating voltage ul/csa | Main Circuit 600 V |
| data sheet, technical information | https://library.abb.com/d/1SFC132012C0201 |
| rated control supply voltage (us) | 100 ... 240 V AC |
| signal indication running r (led) | Green |
| connecting capacity supply circuit | Rigid 1 x 0.75 ... 2.5 mm2 |
| rated control circuit voltage (uc) | 50 Hz / 60 Hz 100 ... 240 V ACDC Operation 24 V |
| switch for inside delta connection | No |
| signal indication ramping up/down (led) | Green |
| signal indication completed start ramp (led) | Green |
| starting capacity at maximum rated current ie | 4xIe for 6s |
| rated operational power - in-line connection (pe) | (230 V) 22 kW(400 V) 37 kW(500 V) 45 kW |
| signal indication ready to start/standby on (led) | Green |
| rated operational current - in-line connection (ie) | 72 A |
| number of starts per hour at 3.5*ie for 7 sec. 50% on time 50% off time | 10 |
