ABB
1SFA897110R7000
Product type: PSE142-600-70

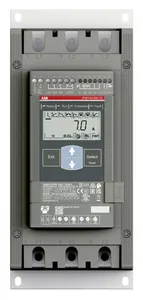

PSE142-600-70 Softstarter
Description
The softstarter PSE142-600-70 has a rated maximum operational current of 142 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or a torque ramp. It has a built-in bypass for easy installation and energy saving. A RUN, TOR, and Event signal is available from a relay output in NO (normally open state). The PSE has functions such as current limit, kickstart, analog output, EOL, underload, and locked rotor protection. To interact with PSE, it has an Illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by Reset of fault. Another popular option is the built-in Fieldbus communication Modbus RTU, but we can also use an external adaptor and a Fieldbus plug. The new generation PSE is a true general pur­pose softstarter. It’s a perfect balance be­tween high starting capacity and cost effi­ciency. It is now featuring built-in Fieldbus communication. They are suitable for small to medium-sized three-phase motors with nominal currents from 18...370 A. Typical applications are, for example, pumps, fans, compressors, and conveyors.
Read More
- Drives
- Softstarters
- Softstarters
- PSE Softstarters
- PSE142
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SFA897110R7000.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 4.4 KG / psc. |
| Commodity number | 85044090 |
| Country of origin | SE |
| Dimensions (WxHxD) | 130x295x220 mm |
| EAN code | 7320500400685 |
| Product group | SG |
| eclass | V11.0 : 27370907 |
| etim 4 | EC002572 - Electronic motor control and protection device |
| etim 5 | EC002572 - Electronic motor control and protection device |
| etim 6 | EC002572 - Motor management device |
| unspsc | 39121521 |
| ramp time | 0 ... 30 second [unit of time]1 ... 30 second [unit of time] |
| rohs status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| communication | FiledBusPlug(Optional) |
| terminal type | Main Circuit: Bars |
| analog outputs | 4...20 mA |
| cqc certificate | https://library.abb.com/d/CQC2011010304468089 |
| rohs information | https://library.abb.com/d/1SFC132043D0201 |
| run signal relay | Yes |
| product main type | PSE142 |
| tightening torque | Control Circuit 0.5 N·mMain Circuit 18 N·mSupply Circuit 0.5 N·m |
| fault signal relay | Yes |
| overload protection | Build-in electronic overload protection |
| rated frequency (f) | 50/60 HzMain Circuit 50 / 60 Hz |
| abb type designation | PSE142-600-70 |
| ampere rating ul/csa | 130 A |
| by-pass signal relay | Yes |
| degree of protection | IP00 |
| overload signal relay | Yes |
| current limit function | 1.5 ... 7xIe |
| ambient air temperature | Operation -25 ... +60 °CStorage -40 ... +70 °C |
| global commercial alias | PSE142-600-70 |
| tightening torque ul/csa | Control Circuit 4.4 in·lbMain Circuit 159.3Supply Circuit 4.4 in·lb |
| environmental information | https://library.abb.com/d/1SFC132042D0201 |
| rated operational voltage | 208 ... 600 V AC |
| service factor percentage | 100 % |
| object classification code | Q |
| initial voltage during start | 30 ... 70 % |
| signal indication fault (led) | Red |
| declaration of conformity - ce | https://library.abb.com/d/2CMT2015-005447 |
| integrated electronic overload | Yes |
| step down voltage special ramp | No % |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001545 |
| connecting capacity main circuit | Hole Diameter 8.5 mmRigid 1/2 x 2.5 ... 70 mm2Width and Thickness 17.5x5 mm |
| maximum operating voltage ul/csa | Main Circuit 600 V |
| adjustable rated motor current ie | 30 ... 100 % |
| data sheet, technical information | https://library.abb.com/d/1SFC132012C0201 |
| rated control supply voltage (us) | 100 ... 250 V AC |
| signal indication running r (led) | Green |
| connecting capacity supply circuit | Rigid 1 x 2.5 mm2 |
| rated control circuit voltage (uc) | DC Operation 24 V |
| signal indication protection (led) | Yellow |
| switch for inside delta connection | No |
| connecting capacity control circuit | Rigid 1 x 2.5 mm2Rigid 2 x 1.5 mm2 |
| signal indication ramping up/down (led) | Green |
| signal indication completed start ramp (led) | Green |
| starting capacity at maximum rated current ie | 4xIe for 10s |
| rated operational power - in-line connection (pe) | (230 V) 40 kW(400 V) 75 kW(500 V) 90 kW |
| signal indication ready to start/standby on (led) | Green |
| rated operational current - in-line connection (ie) | 143 A |
| number of starts per hour at 3.5*ie for 7 sec. 50% on time 50% off time | 10 |
