Product type: AF140-30-00B-33

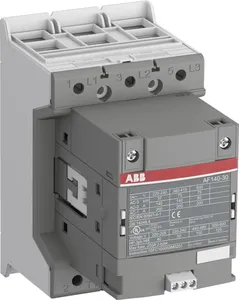

AF140-30-00B-33 Contactor
Description
The AF140-30-00B-33 is a 3 pole - 690 V IEC or 600 V UL contactor with Main Circuit Bars, controlling motors up to 75 kW / 400 V AC (AC-3) or 100 hp / 480 V UL and switching power circuits up to 200 A (AC-1) or 200 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SFL447002R3300.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 1.3 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | SE |
| Dimensions (WxHxD) | 90x150x142.5 mm |
| EAN code | 7320500480892 |
| Product group | SC |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| nema size | 4 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| operate time | Between Coil De-energization and NO Contact Opening 37 ... 47 msBetween Coil Energization and NO Contact Closing 25 ... 55 ms |
| terminal type | Main Circuit: Bars |
| bv certificate | https://library.abb.com/d/BV_36353_A0BV |
| cb certificate | https://library.abb.com/d/SEMKO_SE-70479M1 |
| gl certificate | https://library.abb.com/d/DNV_E-14043 |
| lr certificate | https://library.abb.com/d/LR_14_70011(E1) |
| abs certificate | https://library.abb.com/d/14-LD1092198-PDA |
| ccs certificate | https://library.abb.com/d/GB14T00030 |
| cqc certificate | https://library.abb.com/d/CQC2013010304604055 |
| cul certificate | https://library.abb.com/d/20120925-E36588 |
| dnv certificate | https://library.abb.com/d/DNV_E-14043 |
| eac certificate | https://library.abb.com/d/9AKK107046A8618 |
| prs certificate | https://library.abb.com/d/TE_2092_880423_16 |
| ul listing card | https://library.abb.com/d/UL_E36588 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 6 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 6 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 130 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 130 V·APull-in at Max. Rated Control Circuit Voltage DC 135 W |
| rina certificate | https://library.abb.com/d/ELE060313XG_002 |
| rmrs certificate | https://library.abb.com/d/9AKK107045A6978 |
| rohs information | https://library.abb.com/d/2CMT2015-005439 |
| dnv gl certificate | https://library.abb.com/d/DNV_E-14043 |
| rated frequency (f) | Main Circuit 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 |
| coil operating limits | (acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C) |
| mechanical durability | 5 million |
| horsepower rating nema | (200 V AC) Three Phase 40 Hp(230 V AC) Three Phase 50 Hp(460 V AC) Three Phase 100 Hp(575 V AC) Three Phase 100 Hp |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... +70 °C |
| environmental information | https://library.abb.com/d/2CMT004732, https://library.abb.com/d/1SAC200032H0002 |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated making capacity ac-3 | 10 x Ie AC-3 |
| rated making capacity ac-3e | 12 x Ie AC-3e |
| rated breaking capacity ac-3 | 8 x Ie AC-3 |
| rated breaking capacity ac-3e | 8.5 x Ie AC-3e |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| continuous current rating nema | 135 A |
| declaration of conformity - ce | https://library.abb.com/d/2CMT2015-005439 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001304 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| declaration of conformity - ukca | https://library.abb.com/d/2CMT2020-006118 |
| short-circuit protective devices | gG Type Fuses 315 A |
| data sheet, technical information | https://library.abb.com/d/1SBC100192C02 |
| rated operational power ac-3 (pe) | (415 V) 75 kW(440 V) 90 kW(500 V) 90 kW(690 V) 75 kW(380 / 400 V) 75 kW(220 / 230 / 240 V) 37 kW |
| idea granular category code (igcc) | 4755 >> Contactors |
| rated control circuit voltage (uc) | 50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V |
| rated operational power ac-3e (pe) | (415 V) 75 kW(440 V) 90 kW(500 V) 90 kW(690 V) 75 kW(380 / 400 V) 75 kW(220 / 230 / 240 V) 37 kW |
| rated operational current ac-1 (ie) | (690 V) 40 °C 200 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 140 A(440 V) 55 °C 140 A(500 V) 55 °C 80 A(690 V) 55 °C 80 A(380 / 400 V) 55 °C 140 A(220 / 230 / 240 V) 55 °C 140 |
| rated operational current ac-3e (ie) | (415 V) 60 °C 140 A(440 V) 60 °C 140 A(500 V) 60 °C 130 A(690 V) 60 °C 80 A(380 / 400 V) 60 °C 140 A(220 / 230 / 240 V) 60 °C 140 A |
| maximum electrical switching frequency | (AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour |
| maximum mechanical switching frequency | 300 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 8 kV |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 200 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1168 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 200 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 477 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1460 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 674 A |
