Product type: AFS370-30-12-33
AFS370-30-12-33
Description

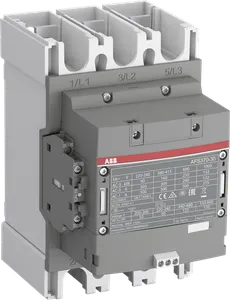

The AFS370-30-12-33 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted 1 left (1 N.O + 1 N.C.) and fixed 1 right (1 N.C.) side mounted auxiliary contact blocks with Main Circuit Bars connections, controlling motors up to 200 kW / 400 V AC (AC-3) or 300 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 520 A UL general use. AFS contactors can be easily integrated in machine manufacturer’s systems complying with main standards EN ISO 13849 and EN 62061 - guaranteeing the safe use of your machinery and equipment. An easily identifiable yellow low energy auxiliary contact block ensures the status feedback circuits required in machine safety applications. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SFL607082R3312.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 4 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | |
| Dimensions (WxHxD) | 140x225x180 mm |
| EAN code | 7320500541357 |
| Product group | SC |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| operate time | Between Coil De-energization and NO Contact Opening 37 ... 47 msBetween Coil Energization and NO Contact Closing 25 ... 55 ms |
| terminal type | Main Circuit: Bars |
| cb certificate | https://library.abb.com/d/SE-89316 |
| cqc certificate | https://library.abb.com/d/CQC2014010304676670 |
| cul certificate | https://library.abb.com/d/20121217-E36588 |
| eac certificate | https://library.abb.com/d/1SFC101360D1101 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 17.5 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 17.5 V·AHolding at Max. Rated Control Circuit Voltage DC 3 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 385 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 385 V·APull-in at Max. Rated Control Circuit Voltage DC 410 W |
| rohs information | https://library.abb.com/d/2CMT2018-005695 |
| suva certificate | https://library.abb.com/d/2CMT2019-005858 |
| e-number (finland) | 3709034 |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| coil operating limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| mechanical durability | 5 million |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... +70 °C |
| horsepower rating ul/csa | (200 ... 208 V AC) Three Phase 125 hp(220 ... 240 V AC) Three Phase 150 hp(440 ... 480 V AC) Three Phase 300 hp(550 ... 600 V AC) Three Phase 350 hp |
| general use rating ul/csa | (600 V AC) 520 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 5000 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 4000 A |
| rated operational voltage | Main Circuit 1000 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated making capacity ac-3 | 10 x Ie AC-3 |
| rated breaking capacity ac-3 | 8 x Ie AC-3 |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/2CMT2018-005695 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001305 |
| number of auxiliary contacts nc | 2 |
| number of auxiliary contacts no | 1 |
| connecting capacity main circuit | Flexible 1 x 16 ... 240 mm2Rigid Al-Cable 1 x 185 ... 240 mm2Rigid Cu-Cable 2 x 70 ... 185 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/2CMT2020-006125 |
| maximum operating voltage ul/csa | Main Circuit 600 V |
| short-circuit protective devices | gG Type Fuses 630 A |
| data sheet, technical information | https://library.abb.com/d/1SBC100208C02__ |
| rated operational power ac-3 (pe) | (415 V) 200 kW(440 V) 200 kW(500 V) 250 kW(690 V) 315 kW(1000 V) 200 kW(380 / 400 V) 200 kW(220 / 230 / 240 V) 110 kW |
| idea granular category code (igcc) | 4755 >> Contactors |
| rated control circuit voltage (uc) | 50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V |
| rated operational current ac-1 (ie) | (1000 V) 40 °C 400 A(1000 V) 60 °C 350 A(1000 V) 70 °C 290 A(690 V) 40 °C 600 A(690 V) 60 °C 500 A(690 V) 70 °C 400 A |
| rated operational current ac-3 (ie) | (415 V) 60 °C 370 A(440 V) 60 °C 370 A(500 V) 60 °C 315 A(690 V) 60 °C 315 A(1000 V) 60 °C 141 A(380 / 400 V) 60 °C 370 A(220 / 230 / 240 V) 60 °C 370 A |
| rated operational current dc-1 (ie) | (110 V) 2 Poles in Series, 40 °C 450 A(220 V) 3 Poles in Series, 40 °C 450 A |
| rated operational current dc-3 (ie) | (110 V) 2 Poles in Series, 40 °C 450 A(220 V) 3 Poles in Series, 40 °C 450 A |
| rated operational current dc-5 (ie) | (110 V) 2 Poles in Series, 40 °C 450 A(220 V) 3 Poles in Series, 40 °C 450 A |
| connecting capacity auxiliary circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm2Flexible 2x0.75 ... 2.5 mm2Solid 1 x 1 ... 4 mm2Stranded 2 x 1 .... 4 mm2 |
| maximum electrical switching frequency | (AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour |
| maximum mechanical switching frequency | 300 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 8 kV |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 600 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2960 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 600 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1208 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3700 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1709 A |
