ABB
1SFL677001R9104
Product type: AF1650T-30-11 230-240V 50/60Hz

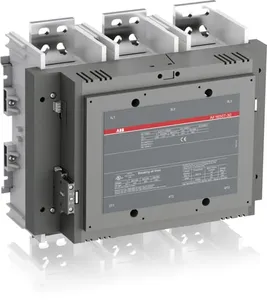

AF1650T-30-11 230-240V 50/60Hz / 230-240V DC Contactor
Description
The AF1650T-30-11 230-240V 50/60Hz / 230-240V DC is a 3 pole - 1000 V IEC or 1000 V UL contactor pre-mounted auxiliary contacts and and Main Circuit Bars, controlling motors up to 560 kW / 400 V AC (AC-3) or 900 hp / 480 V UL and switching power circuits up to 1650 A (AC-1) or 1650 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (220-240 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SFL677001R9104.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 33 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | SE |
| Dimensions (WxHxD) | 438x392x244 mm |
| EAN code | 7320500480366 |
| Product group | SC |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| nema size | 8 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| operate time | Between Coil De-energization and NC Contact Closing 35 ... 55 msBetween Coil De-energization and NO Contact Opening 35 ... 55 msBetween Coil Energization and NC Contact Opening 50 ... 80 msBetween Coil Energization and NO Contact Closing 50 ... 80 ms |
| terminal type | Main Circuit: Bars |
| bv certificate | https://library.abb.com/d/BV_13409-C0BV |
| cb certificate | https://library.abb.com/d/SEMKO_SE-74013 |
| gl certificate | https://library.abb.com/d/GL_20263-04HH |
| lr certificate | https://library.abb.com/d/16-20064 |
| abs certificate | https://library.abb.com/d/15-LD1408622-PDA |
| ccs certificate | https://library.abb.com/d/GB14T00030 |
| cqc certificate | https://library.abb.com/d/CQC2003010304101933 |
| cul certificate | https://library.abb.com/d/UL_20130904-E73397 |
| eac certificate | https://library.abb.com/d/9AKK107046A8618 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 48 V·AHolding at Max. Rated Control Circuit Voltage DC 20.5 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·APull-in at Max. Rated Control Circuit Voltage DC 2290 V·A |
| rina certificate | https://library.abb.com/d/ELE060313XG_002 |
| rohs information | https://library.abb.com/d/2CMT2019-005796 |
| dimension diagram | https://library.abb.com/d/53540930-7 |
| lovag certificate | https://library.abb.com/d/SE-201993 |
| dnv gl certificate | https://library.abb.com/d/TAE00001W1 |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| coil operating limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| mechanical durability | 0.5 million |
| horsepower rating nema | (230 V AC) Three Phase 450 Hp(460 V AC) Three Phase 900 Hp(575 V AC) Three Phase 900 Hp |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... +70 °C |
| horsepower rating ul/csa | (220 ... 240 V AC) Three Phase 450 hp(440 ... 480 V AC) Three Phase 900 hp(550 ... 600 V AC) Three Phase 1150 hp |
| environmental information | https://library.abb.com/d/1SFC101014D0201 |
| general use rating ul/csa | (1000 V AC) 1650 A(600 V AC) 1650 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 12000 A |
| rated operational voltage | Main Circuit 1000 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated making capacity ac-3 | 10 x Ie AC-3 |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/2CMT2019-005796 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001303 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 1 |
| connecting capacity main circuit | Bar 100 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/2CMT2020-006118 |
| maximum operating voltage ul/csa | Main Circuit 600 V |
| data sheet, technical information | https://library.abb.com/d/1SBC100192C0206 |
| rated operational power ac-3 (pe) | (415 V) 630 kW(440 V) 710 kW(500 V) 710 kW(690 V) 1000 kW(1000 V) 600 kW(380 / 400 V) 560 kW(220 / 230 / 240 V) 315 kW |
| idea granular category code (igcc) | 4755 >> Contactors |
| rated control circuit voltage (uc) | 50 Hz 230 ... 240 V60 Hz 230 ... 240 VDC Operation 230 ... 240 V |
| rated operational current ac-1 (ie) | (1000 V) 40 °C 1650 A(1000 V) 55 °C 1450 A(1000 V) 70 °C 1270 A(690 V) 40 °C 1650 A(690 V) 55 °C 1450 A(690 V) 70 °C 1270 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 1060 A(440 V) 55 °C 1060 A(500 V) 55 °C 970 A(690 V) 55 °C 970 A(1000 V) 55 °C 400 A(380 / 400 V) 55 °C 1060 A(220 / 230 / 240 V) 55 °C 1060 |
| rated operational current dc-1 (ie) | (110 V) 1-Pole, 40 °C 1650 A(110 V) 2 Poles in Series, 40 °C 1650 A(220 V) 3 Poles in Series, 40 °C 1650 A(600 V) 3 Poles in Series, 40 °C 1650 A(850 V) 3 Poles in Series, 40 °C 1650 A |
| connecting capacity auxiliary circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm2Flexible 2x0.75 ... 2.5 mm2Solid 2 x 1 ... 4 mm2Stranded 2 x 1 .... 4 mm2 |
| maximum electrical switching frequency | (AC-1) 60 cycles per hour(AC-2 / AC-4) 60 cycles per hour(AC-3) 60 cycles per hour |
| maximum mechanical switching frequency | 300 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 8 kV |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 1650 A |
