ABB
1SVR320861R1000
Product type: CP-S.1 24/40.0

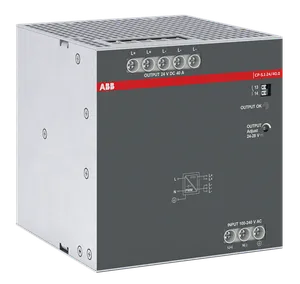

CP-S.1 24/40.0 Power supply In:110-240VAC/110-250VDC Out:DC 24V/40A
Description
The CP-S.1 24/40.0 is a power supply from the new generation CP-S.1 range. The primary switch mode power supply offers a wide range input of 99-264 V AC and 99-277 V DC, rated input voltage is 110-240 V AC, respectively 110-250 V DC. The rated output power is 960 W, rated output current is 40 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
Read More
- Low Voltage Products and Systems
- Control Products
- Power Supplies
- CP-S.1
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 1SVR320861R1000.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 2.49 KG / psc. |
| Commodity number | 85044090 |
| Country of origin | |
| Dimensions (WxHxD) | 125x129.4x127 mm |
| EAN code | 4013614561139 |
| Product group | EA |
| eclass | V11.0 : 27040701 |
| etim 5 | EC002540 - DC-power supply |
| etim 6 | EC002540 - DC-power supply |
| etim 7 | EC002540 - DC-power supply |
| etim 8 | EC002540 - DC-power supply |
| unspsc | 39121004 |
| function | Switch mode power supply |
| hold-up time | (230 V AC) min. 20 ms |
| output power | 960 W |
| cb certificate | https://library.abb.com/d/CB_DE_2-029958-M1 |
| output current | 40 A |
| wiring diagram | https://library.abb.com/d/9AKK107992A8774 |
| dnv certificate | https://library.abb.com/d/DNV_TAA0000300 |
| eac certificate | https://library.abb.com/d/EAC_RU_C-DE.MO05.B.01452 |
| number of phases | 1 |
| pollution degree | 2 |
| mounting position | 1 |
| tightening torque | 2.8 N·mInput Circuit 1.47 N·mOutput Circuit 1.47 N·m |
| e-number (finland) | 2712890 |
| input voltage (uin) | 99 ... 264 V AC99 ... 277 V DC |
| rated frequency (f) | 50 Hz60 HzDC |
| degree of protection | Housing IP20Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| rated output voltage | 24 V DC |
| output voltage (uout) | 24 V DC |
| typical input current | (115 V AC) 9.5 A(230 V AC) 5 A |
| wire stripping length | Auxiliary Circuit 7 mmInput Circuit 10 mmOutput Circuit 10 mm |
| rated frequency limits | 45 ... 65 Hz |
| ambient air temperature | Operation -25 ... +70 °CStorage -40 ... +85 °C |
| characteristic of output | U/I characteristic curve with power reserve |
| tightening torque ul/csa | Input Circuit 13 in·lbOutput Circuit 13 in·lb |
| environmental information | https://library.abb.com/d/1SAC200151H0001 |
| minimum mounting distance | Other Device Same Type, Horizontal 25 mmOther Device Same Type, Vertical 50 mm |
| rated input voltage (uin) | 110 ... 240 V AC110 ... 250 V DC |
| object classification code | T |
| output current maximum (iout) | 60 A |
| rated insulation voltage (ui) | Input Circuit / Output Circuit 300 VInput Circuit / PE 300 VInput Circuit / Relay Contact 300 VOutput Circuit / PE 50 V |
| declaration of conformity - ce | https://library.abb.com/d/1SVD982043-00 |
| declaration of conformity - ukca | https://library.abb.com/d/1SVD982043-10 |
| connecting capacity input circuit | Flexible with Ferrule 0.5 ... 10.0 mm2Flexible 0.5 ... 10.0 mm2Rigid 0.5 ... 10.0 mm2 |
| data sheet, technical information | https://library.abb.com/d/1SAC200141H0001 |
| connecting capacity output circuit | Flexible with Ferrule 0.5 ... 10 mm2Flexible 0.5 ... 10.0 mm2Rigid 0.5 ... 10.0 mm2 |
| electromagnetic compatibility (emc) | Immunity - Class BEmission - Class B |
| surge immunity acc. to iec 61000-4-5 | Level 4 Line-to-Ground 4 kVLevel 4 Line-to-Line 2 kV |
| maximum operating altitude permissible | 5000 m |
| rated impulse withstand voltage (uimp) | Input Circuit / Output Circuit 4 kVInput Circuit / PE 4 kVInput Circuit / Relay Contact 4 kVOutput Circuit / PE 0.8 kVOutput Circuit 0.8 kV |
| connecting capacity input circuit ul/csa | Flexible with Ferrule 20-8 AWGFlexible 20-8 AWGRigid 20-8 AWG |
| connecting capacity output circuit ul/csa | Flexible with Ferrule 20-8 AWGFlexible 20-8 AWGRigid 20-8 AWG |
| resistance to shock acc. to iec 60068-2-27 | 30g / 3 shocks / 6 ms |
| resistance to damp heat acc. to iec 60068-2-30 | Test Db: 55°C, 2 cycles |
| resistance to vibrations acc. to iec 60068-2-6 | 10-58 Hz, ±0.15 mm; 58-150 Hz, 2g, 10 sweep cycles each axis |
| electrostatic discharge (esd immunity) acc. to iec 61000-4-2 | Level 4 Air Discharge 15 kVLevel 4 Contact Discharge 8 kV |
| radiated electromagnetic field immunity acc. to iec 61000-4-3 | Level 3 10 V/m |
