Product type: S803PV-SP25

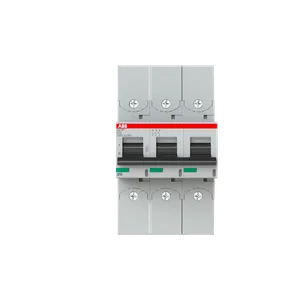

S803PV-SP25 High Performance MCB

Datasheet

Description

The S803PV-SP25 is a 3-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 25 A. It is a current limiting device with a maximum breaking capacity of 5kA at 1200V. It can be used for voltages up to 1200V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803PV-SP25 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803PV-SP25 more comfortable. Due to the fast arc extinction of S803PV-SP25 your application will be secured.

Low Voltage Products and Systems
Modular DIN Rail Products
High Performance Circuit Breakers HPCBs

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CCF019614R0001.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.735 KG / psc.
Commodity number	85362010
Country of origin	CH
Dimensions (WxHxD)	81x95x82.5 mm
EAN code	7612271471538
Product group	AF
cn8	85362020
eclass	V11.0 : 27141901
etim 7	EC000042 - Miniature circuit breaker (MCB)
etim 8	EC000042 - Miniature circuit breaker (MCB)
standards	IEC/EN 60947-2
power loss	12.9 Wat Rated Operating Conditions per Pole 4.3 W
rohs status	Following EU Directive 2011/65/EU
release type	SP
frequency (f)	0...0 Hz
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
number of poles	3
pollution degree	2
rohs information	https://library.abb.com/d/9AKK107680A3903, https://library.abb.com/d/2CCC005084D0202
input voltage type	DC
product net length	82.5 mm
rated current (in)	25 A
rated voltage (ur)	acc. to IEC 60947-2 1200 V DC
ambient temperature	-25...60 °C
built-in depth (t2)	111 mm
connecting capacity	Flexible 0...50 mm2Rigid 0...70 mm2
rated frequency (f)	0 ... 0 Hz
degree of protection	IP20
overvoltage category	III
accessories available	Yes
energy limiting class	3
ambient air temperature	Operation -25...60 °C
tripping characteristic	B
environmental information	https://library.abb.com/d/2CCY413207D0203
number of protected poles	3
rated operational voltage	acc. to IEC 60947-2 1200 V DC
object classification code	F
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 1500 V DC
declaration of conformity - ce	https://library.abb.com/d/2CCC005084D0202
rated operational current (ie)	25 A
data sheet, technical information	https://library.abb.com/d/2CCC413003C0208
width in number of modular spacings	4.5
rated impulse withstand voltage (uimp)	8 kV
rated service short-circuit breaking capacity (ics)	(1200 V DC) 5 kA
rated ultimate short-circuit breaking capacity (icu)	(1200 V DC) 5 kA
