ABB

2CCF544230E0630

Name: 2CCF544230E0630
Brand: ABB
Availability: PreOrder

Product type: F404A S-63/0.3

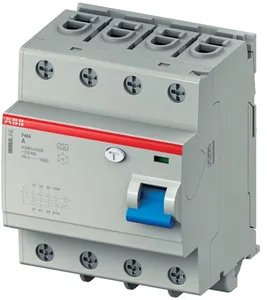

F404A S-63/0.3 Residual Current Circuit Breaker

Datasheet

Description

4-pole selective residual current operated circuit breaker, series F404 S (RCCB) for the SMISSLINE TP System acc. IEC/EN/DIN EN 61008-1, Rated current In 63A, 230/400VAC, Rated sensitivity I Δn 0.3A

Low Voltage Products and Systems
Modular DIN Rail Products
Plug-in Distribution Systems
Residual Current Devices RCDs

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CCF544230E0630.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.43 KG / psc.
Commodity number	85362020
Country of origin	IT
Dimensions (WxHxD)	72x91x75 mm
EAN code	7612270104369
Product group	AF
cn8	85362020
size	4 modules
eclass	V11.0 : 27142201
etim 7	EC000003 - Residual current circuit breaker (RCCB)
etim 8	EC000003 - Residual current circuit breaker (RCCB)
standards	IEC/EN 61008
power loss	17.9 W
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
mounting type	Conductor bar
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
number of poles	4
pollution degree	2
rohs information	https://library.abb.com/d/2CCC413008D0206_RoHS
dimension diagram	https://library.abb.com/d/9AKK107492A6192
eplan catalog tree	Electrical engineering / Protection devices / General
input voltage type	AC
product net length	72 mm
rated current (in)	63 A
rated voltage (ur)	230 / 400 V
ambient temperature	-25...55 °C
built-in depth (t2)	69 mm
rated cross-section	1 - Solid-Core 0...25 mm24 - Multi-Wired 0...25 mm2
rated frequency (f)	50 ... 60 Hz
degree of protection	IP20
leakage current type	A
accessories available	Yes
maximum surge current	5 kA
e-number (switzerland)	531446215
rated residual current	300 mA
ambient air temperature	Operation -25...55 °C
operating characteristic	Selective
type of residual current	A type
environmental information	https://library.abb.com/d/2CCY451206D0201
rated operational voltage	230 ... 400 V AC
object classification code	FB
position of neutral terminals	Right
rated insulation voltage (ui)	500 V
declaration of conformity - ce	https://library.abb.com/d/2CCC451037D0201
rated operational current (ie)	63 A
data sheet, technical information	https://library.abb.com/d/9AKK107492A6192
short-circuit current rating (sccr)	0.3 A
width in number of modular spacings	4
rated impulse withstand voltage (uimp)	4 kV
rated service short-circuit breaking capacity (ics)	1 kA
