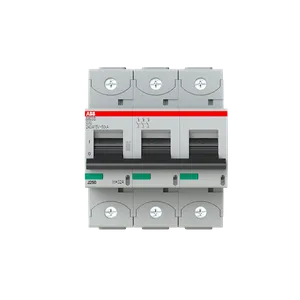

Product type: S803S-C32
S803S-C32 High Performance MCB
Description
The S803S-C32 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 32 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-C32 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-C32 more comfortable. Due to the fast arc extinction of S803S-C32 your application will be secured.
Read More
- Low Voltage Products and Systems
- Modular DIN Rail Products
- High Performance Circuit Breakers HPCBs
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CCS863001R0324.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 735 G / psc. |
| Commodity number | 85362010 |
| Country of origin | Switzerland (CH) |
| Dimensions (WxHxD) | 81x95x82.5 mm |
| EAN code | 7612271200770 |
| Product group | AF |
| cn8 | 85362020 |
| size | 3 modules |
| eclass | V11.0 : 27141901 |
| etim 7 | EC000042 - Miniature circuit breaker (MCB) |
| etim 8 | EC000042 - Miniature circuit breaker (MCB) |
| remarks | Connection from top and bottomConnecting with CU onlyIP40 in enclosure with coverCage terminal with captive screw |
| standards | IEC/EN 60947-2, IEC/EN 60898-1, UL 1077 |
| power loss | 9.6 Wat Rated Operating Conditions per Pole 3.2 W |
| rohs status | Following EU Directive 2011/65/EU |
| release type | C |
| frequency (f) | 50 ... 60 Hz |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| weee b2c / b2b | Business To Business |
| number of poles | 3 |
| actuator marking | I / O |
| housing material | Insulation group I, RAL 7035 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/9AKK107680A3903, https://library.abb.com/d/2CCC005083D0202 |
| dimension diagram | https://library.abb.com/d/2CCC413003C0201 |
| e-number (sweden) | 2101565 |
| mounting position | Any |
| tightening torque | 3.5 N·m31 in·lb |
| e-number (finland) | 3212156 |
| eplan catalog tree | Electrical engineering / Protection devices / General |
| input voltage type | AC/DC |
| product net length | 81 mm |
| rated current (in) | 32 A |
| rated voltage (ur) | acc. to IEC 60947-2 690 V ACacc. to IEC 60947-2 375 V DCacc. to IEC 60898-1 400 V AC |
| ambient temperature | -25...60 °C |
| built-in depth (t2) | 88.5 mm |
| connecting capacity | Rigid 0 ... 50 mm2Flexible 0 ... 70 mm2 |
| operational voltage | Maximum 230/400 V ACMinimum 12 V AC |
| rated frequency (f) | 50...60 Hz |
| degree of protection | IP20 |
| electrical endurance | 10000 cycle |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | IV |
| accessories available | Yes |
| energy limiting class | 3 |
| e-number (switzerland) | 807182315 |
| ambient air temperature | Operation -25...60 °C |
| tripping characteristic | C |
| recommended screw driver | Pozidriv 2 |
| type of residual current | standard version |
| environmental information | https://library.abb.com/d/2CCY413207D0203 |
| number of protected poles | 3 |
| rated operational voltage | acc. to IEC 60947-2 690 V ACacc. to IEC 60947-2 375 V DCacc. to IEC 60898-1 400 V AC |
| object classification code | F |
| contact position indication | ON / OFF / TRIP |
| mechanical endurance (nendu) | 10000 cycle |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 690 V |
| declaration of conformity - ce | https://library.abb.com/d/2CCC005083D0202 |
| rated operational current (ie) | 32 A |
| data sheet, technical information | https://library.abb.com/d/2CCC413003C0208 |
| reference ambient air temperature | acc. to IEC60947-2 30 °Cacc. to EN60898-1 30 °C |
| interrupting rating acc. to ul1077 | (480Y / 277 V AC) 14 kA(600Y / 347 V AC) 6 kA |
| rated short-circuit capacity (icn) | (400 V) 25 kA(230 V) 25 kA |
| width in number of modular spacings | 4.5 |
| rated impulse withstand voltage (uimp) | 8 kV |
| rated conditional short-circuit current (inc) | (230 V) 50 kA(400 V) 50 kA |
| resistance to vibrations acc. to iec 60068-2-6 | 2 - 13.2 Hz / 1mm13.2 - 100Hz / 0.7gwith load 100% x Ie |
| rated service short-circuit breaking capacity (ics) | (240 / 415 V AC) 40 kA(254 / 440 V AC) 22.5 kA(400 / 690 V AC) 4 kA(125 V DC) 30 kA |
| rated ultimate short-circuit breaking capacity (icu) | (240 / 415 V AC) 50 kA(254 / 440 V AC) 30 kA(400 / 690 V AC) 6 kA(125 V DC) 30 kA(230 V) 50 kA |
