ABB

2CCV672502R0001

Name: 2CCV672502R0001
Brand: ABB
Availability: PreOrder

Product type: ZLS252

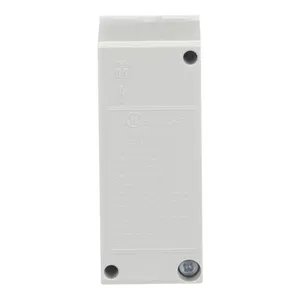

ZLS252 Incoming terminal block

Description

Incoming terminal Feeder component L2 with 2 Modules 36mm width, 200A; 10 mm2 up to 95 mm2 max. 1 wire. For the SMISSLINE TP 125A and 250A system

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CCV672502R0001.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.12 KG / psc.
Commodity number	85389040
Country of origin	CH
Dimensions (WxHxD)	36x50x86 mm
EAN code	7612270505326
Product group	AF
cn8	85389040
eclass	V11.0 : 27370303
etim 7	EC001522 - Busbar
etim 8	EC001522 - Busbar
standards	IEC/EN 61439-6
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
model number	Flat
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
rohs information	https://library.abb.com/d/9AKK107991A9646
dimension diagram	https://library.abb.com/d/9AKK107492A6192
surface finishing	Tinned
eplan catalog tree	Electrical engineering / Protection devices / General
product net length	86 mm
rated current (in)	200 A
e-number (switzerland)	809997027
type of residual current	standard version
environmental information	https://library.abb.com/d/2CCY451206D0201
rated operational voltage	230 / 400 V AC
object classification code	W
declaration of conformity - ce	https://library.abb.com/d/9AKK107991A9646
data sheet, technical information	https://library.abb.com/d/9AKK107492A6192
