ABB

2CDD273111R0040

Product type: SHD203/40

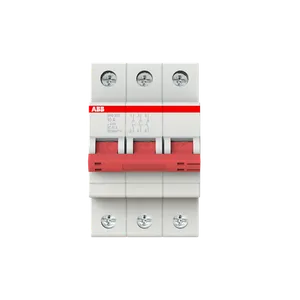

SHD203/40 Switch Disconnectors

Description

SHD203/40 Switch Disconnector 3P, 40A
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Command and Signalling Devices
  • Switch Disconnectors
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CDD273111R0040.
  • ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.225 KG / psc.
Commodity number85369095
Country of originBulgaria (BG)
Dimensions (WxHxD)52.5x85x69 mm
EAN code4016779904452
Product groupAR
cn88536 90 95
eclassV11.0 : 27142301
etim 7EC001545 - Main switch for distribution board
etim 8EC001545 - Main switch for distribution board
power lossat Rated Operating Conditions per Pole 2.53 W
cover colorGrey
rohs statusFollowing EU Directive 2011/65/EU
switch typeOff
actuator typeToggle
terminal typeScrew Terminals
weee category5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2bBusiness To Consumer
number of poles3
actuator markingI / O
housing materialInsulation Group I, RAL 7035
pollution degree3
rohs informationhttps://library.abb.com/d/2CDK440037D0202
actuator materialInsulation Group II, Red, Sealable
mounting positionAny
tightening torque2 N·m
eplan catalog treeElectrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton
input voltage typeAC
rated current (in)40 A
rated voltage (ur)415 V12 V Minimum
built-in depth (t2)69 mm
connecting capacityFlexible 0.75 ... 16 mm2Rigid 0.75 ... 25 mm2Stranded 0.75 ... 25 mm2
operational voltageMaximum 436 V ACMinimum 12 V AC
rated frequency (f)50 / 60 Hz
screw terminal typeCable Clamp
degree of protectionIP20Enclosure with Cover IP40
electrical endurance10000 AC cycle
overvoltage categoryIII
utilization categorySwitching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A)
accessories availableNo
number of contacts co0
number of contacts nc0
number of contacts no3
ambient air temperatureOperation -25 ... +55 °CStorage -40 ... +70 °C
environmental conditions28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 %
recommended screw driverPozidriv 2
rated operational voltage415 V AC
object classification codeQ
mechanical endurance (nendu)20000 cycle
declaration of conformity - cehttps://library.abb.com/d/2CDK440035D2703
data sheet, technical informationhttps://library.abb.com/d/2CDC441016D0201
width in number of modular spacings3
rated impulse withstand voltage (uimp)4 kVat 2000 m 5 kVat Sea Level 6.2 kV
resistance to shock acc. to iec 60068-2-2725g / 2 shocks / 13 ms
rated conditional short-circuit current (inc)10 kA
resistance to vibrations acc. to iec 60068-2-65g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
