ABB

2CDL210001R1012

Name: 2CDL210001R1012
Brand: ABB
Availability: PreOrder

Product type: PS1/12

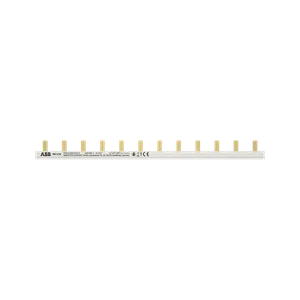

PS1/12 Busbar

Description

Busbar PS1/12. 1 Phase Busbar, 12 PINs, 10mm2

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CDL210001R1012.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.052 KG / psc.
Commodity number	85369010
Country of origin	DE
Dimensions (WxHxD)	20x17x211 mm
EAN code	4016779463300
Product group	AW
cn8	8536 90 10
color	Grey
pitch	44698.0
eclass	V11.0 : 27371306
etim 7	EC000215 - Phase busbar
etim 8	EC000215 - Phase busbar
unspsc	39121614
standards	IEC/EN 60947-1
ral number	RAL 7035 - Light Grey
rohs status	Following EU Directive 2011/65/EU
suitable for	S200F200DDA200
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
accessory type	Busbar
weee b2c / b2b	Business To Consumer
connection type	Pin
number of poles	12
housing material	Light grey, RAL 7035
number of phases	1
pollution degree	2
rohs information	https://library.abb.com/d/2CDK440009K0203
e-number (sweden)	2102711
mounting position	Any
e-number (finland)	3259491
eplan catalog tree	Electrical engineering / Protection devices / General
product net length	211 mm
rated cross-section	10 mm2
rated frequency (f)	50 / 60 HzDC
overvoltage category	III
environmental information	https://library.abb.com/d/DIN EN 60068
rated operational voltage	690 V AC/DCMaximum 690 V
object classification code	W
number of mountable devices	12
number of terminals (nterm)	12
declaration of conformity - ce	https://library.abb.com/d/2CDK446006D0403
rated uninterrupted current (iu)	63 A
data sheet, technical information	https://library.abb.com/d/9AKK106930A8017
width in number of modular spacings	12
rated short-time withstand current low voltage (icw)	25 kA
