| Weight | 0.069 KG / psc. |
| Commodity number | 85369010 |
| Country of origin | DE |
| Dimensions (WxHxD) | 21x27x158 mm |
| EAN code | 4016779463508 |
| Product group | AW |
| cn8 | 8536 90 10 |
| color | Grey |
| pitch | 44698.0 |
| eclass | V11.0 : 27371306 |
| etim 7 | EC000215 - Phase busbar |
| etim 8 | EC000215 - Phase busbar |
| unspsc | 39121614 |
| standards | IEC/EN 60947-1 |
| ral number | RAL 7035 - Light Grey |
| rohs status | Following EU Directive 2011/65/EU |
| suitable for | S200F200DDA200 |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |

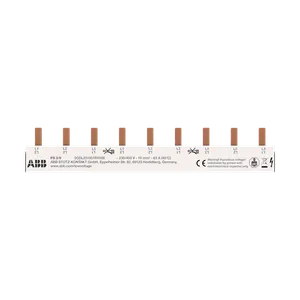

| accessory type | Busbar |
| weee b2c / b2b | Business To Business |
| connection type | Pin |
| number of poles | 9 |
| housing material | Light grey, RAL 7035 |
| number of phases | 3 |
| pollution degree | 2 |
| rohs information | https://library.abb.com/d/2CDK440009K0203 |
| e-number (sweden) | 2102714 |
| mounting position | Any |
| e-number (finland) | 3259493 |
| eplan catalog tree | Electrical engineering / Protection devices / General |
| product net length | 158 mm |
| rated cross-section | 10 mm2 |
| rated frequency (f) | 50 / 60 HzDC |
| overvoltage category | III |
| environmental information | https://library.abb.com/d/DIN EN 60068 |
| rated operational voltage | 690 V AC/DCMaximum 690 V |
| object classification code | W |
| suitable for product class | 3-pole or 1-pole devices |
| number of mountable devices | 3 |
| number of terminals (nterm) | 9 |
| declaration of conformity - ce | https://library.abb.com/d/2CDK446006D0403 |
| rated uninterrupted current (iu) | 63 A |
| data sheet, technical information | https://library.abb.com/d/9AKK106930A8017 |
| width in number of modular spacings | 9 |
| rated short-time withstand current low voltage (icw) | 25 kA |
