Product type: S203-K10

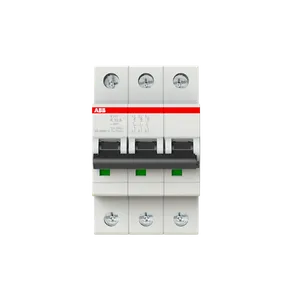

S203-K10 Miniature Circuit Breaker - 3P - K - 10 A
Description
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Read More
- Low Voltage Products and Systems
- Modular DIN Rail Products
- Miniature Circuit Breakers MCBs
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 3091508245 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CDS253001R0427.
- ZWOD Vertriebs und Logistik GmbH carries 221871 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.375 KG / psc. |
| Commodity number | 85362010 |
| Country of origin | Germany (DE) |
| Dimensions (WxHxD) | 52.5x88x69 mm |
| EAN code | 4016779496148 |
| Product group | AA |
| cn8 | 8536 20 10 |
| eclass | V11.0 : 27141901 |
| etim 7 | EC000042 - Miniature circuit breaker (MCB) |
| etim 8 | EC000042 - Miniature circuit breaker (MCB) |
| unspsc | 39121614 |
| standards | IEC/EN 60898-1IEC/EN 60947-2UL 1077 |
| power loss | 4.2 Wat Rated Operating Conditions per Pole 1.4 W |
| eplan macro | 9AKK106713A8194 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| frequency (f) | 50 Hz |
| mounting type | DIN-Rail |
| product range | S200 |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| weee b2c / b2b | Business To Business |
| number of poles | 3 |
| pole net weight | 0.125 kg |
| actuator marking | I / O |
| housing material | Insulation Group II, RAL 7035 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/2CDK403001D0607 |
| actuator material | Insulation Group II, Black, Sealable |
| dimension diagram | https://library.abb.com/d/2CDC022007F0010 |
| e-number (sweden) | 2100730 |
| installation size | acc. to DIN 43880 1 |
| mounting position | Any |
| tightening torque | 2.8 N·m |
| e-number (finland) | 3210916 |
| eplan catalog tree | Electrical engineering / Protection devices / General |
| i2t characteristic | https://library.abb.com/d/9AKK107992A5103 |
| input voltage type | AC/DC |
| rated current (in) | 10 A |
| built-in depth (t2) | 69 mm |
| connecting capacity | Busbar 10 / 10 mm2Flexible with Ferrule 0.75 ... 25 mm2Flexible 0.75 ... 25 mm2Rigid 0.75 ... 35 mm2Stranded 0.75 ... 35 mm2 |
| operational voltage | Maximum (Incl. Tolerance) 440 V AC |
| rated frequency (f) | 50 / 60 Hz |
| screw terminal type | Failsafe Bi-directional Cylinder-lift Terminal |
| certification agency | ENIECUL |
| degree of protection | IP20Enclosure with Cover IP40 |
| electrical endurance | 20000 AC cycle |
| mechanical endurance | 20000 cycle |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | III |
| accessories available | Yes |
| eplan graphical macro | 9AKK106713A8196 |
| wire stripping length | 12.5 mm |
| ambient air temperature | Operation -25 ... +55 °CStorage -40 ... +70 °C |
| dielectric test voltage | 50/60 Hz, 1 min: 2 kV |
| power supply connection | Arbitrary |
| tripping characteristic | K |
| environmental conditions | 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 % |
| recommended screw driver | Pozidriv 2 |
| tightening torque ul/csa | 18 in·lb |
| environmental information | https://library.abb.com/d/2CDK400030D0201 |
| eplan function definition | Circuit breaker / Triple circuit breaker / Triple circuit breaker 1_2_3_4_5_6 |
| number of protected poles | 3 |
| rated operational voltage | acc. to IEC 60898-1 400 V ACacc. to IEC 60947-2 440 V AC |
| connecting capacity ul/csa | Busbar 18-8 AWGConductor 18-4 AWG |
| object classification code | F |
| contact position indication | Red ON / Green OFF |
| rated short-circuit capacity | (AC) 6 kA(DC) 6 kA(400 V AC) 6 kA |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 440 V |
| declaration of conformity - ce | https://library.abb.com/d/2CDK403001D0607 |
| declaration of conformity - ukca | https://library.abb.com/d/9AKK108467A5053 |
| maximum operating voltage ul/csa | 110 V DC480Y / 277 V AC |
| data sheet, technical information | https://library.abb.com/d/9AKK107991A8329 |
| interrupting rating acc. to ul1077 | (277 V AC) 6 kA(480Y / 277 V AC) 6 kA(240 V) 10 kA |
| width in number of modular spacings | 3 |
| rated impulse withstand voltage (uimp) | 4 kVat 2000 m 5 kVat Sea Level 6.2 kV |
| resistance to shock acc. to iec 60068-2-27 | 25g / 2 shocks / 13 ms |
| rated conditional short-circuit current (inc) | (230 V) 20 kA(400 V) 20 kA |
| resistance to vibrations acc. to iec 60068-2-6 | 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In |
| rated service short-circuit breaking capacity (ics) | (230 V AC) 15 kA(400 V AC) 7.5 kA(440 V AC) 7.5 kA |
| rated ultimate short-circuit breaking capacity (icu) | (230 V AC) 20 kA(400 V AC) 10 kA(440 V AC) 10 kA |
