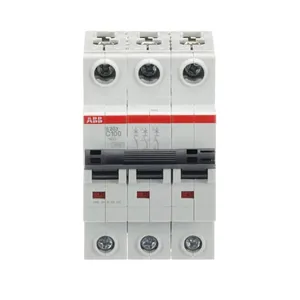

| Weight | 0.42 KG / psc. |
| Commodity number | 85362090 |
| Country of origin | Germany (DE) |
| Dimensions (WxHxD) | 52.5x88x69 mm |
| EAN code | 4016779916288 |
| Product group | AA |
| cn8 | 8536 20 90 |
| eclass | V11.0 : 27141901 |
| etim 7 | EC000042 - Miniature circuit breaker (MCB) |
| etim 8 | EC000042 - Miniature circuit breaker (MCB) |
| unspsc | 39121614 |
| standards | IEC/EN 60898-1IEC/EN 60947-2 |
| power loss | 29.4 Wat Rated Operating Conditions per Pole 9.8 W |
| eplan macro | 9AKK106713A8194 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| actuator type | Toggle |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| weee b2c / b2b | Business To Business |
| number of poles | 3 |
| actuator marking | I / O |
| housing material | Insulation Group I, RAL 7035 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/2CDK400601D2703 |
| actuator material | Insulation Group II, Black, Sealable |
| installation size | acc. to DIN 43880 1 |
| mounting position | Any |
| tightening torque | 3 N·m |
| e-number (finland) | 3210642 |
| eplan catalog tree | Electrical engineering / Protection devices / General |
| input voltage type | AC |
| rated current (in) | 100 A |
| built-in depth (t2) | 69 mm |
| connecting capacity | Busbar 16 / 16 mm2Conductor 2.5 ... 50 mm2Flexible 4 ... 35 mm2Rigid 2.5 ... 50 mm2Stranded 2.5 ... 50 mm2 |
| operational voltage | Maximum (Incl. Tolerance) 440 V ACMinimum 12 V AC |
| rated frequency (f) | 50 / 60 Hz |
| screw terminal type | Failsafe Bi-directional Cylinder-lift Terminal |
| certification agency | ENIEC |
| degree of protection | IP20Enclosure with Cover IP40 |
| electrical endurance | 10000 AC cycle |
| mechanical endurance | 20000 cycle |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | III |
| accessories available | Yes |
| energy limiting class | 3 |
| eplan graphical macro | 9AKK106713A8196 |
| ambient air temperature | Operation -25 ... +55 °CStorage -40 ... +70 °C |
| dielectric test voltage | 50/60 Hz, 1 min: 2 kV |
| power supply connection | Arbitrary |
| tripping characteristic | C |
| environmental conditions | 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 % |
| recommended screw driver | Pozidriv 2 |
| eplan function definition | Circuit breaker / Triple circuit breaker / Triple circuit breaker 1_2_3_4_5_6 |
| number of protected poles | 3 |
| rated operational voltage | acc. to IEC 60898-1 400 V ACacc. to IEC 60947-2 400 V AC |
| object classification code | F |
| contact position indication | ON / OFF |
| rated short-circuit capacity | (AC) 6 kA(DC) 6 kA(230 V AC) 6 kA(400 V AC) 6 kA |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 440 V |
| declaration of conformity - ce | https://library.abb.com/d/2CDK400601D2703 |
| data sheet, technical information | https://library.abb.com/d/9AKK107680A3031 |
| reference ambient air temperature | 30 °C |
| width in number of modular spacings | 3 |
| rated impulse withstand voltage (uimp) | 4 kVat 2000 m 5 kVat Sea Level 6.2 kV |
| resistance to shock acc. to iec 60068-2-27 | 25g / 2 shocks / 13 ms |
| rated conditional short-circuit current (inc) | (230 V) 10 kA(400 V) 20 kA |
| resistance to vibrations acc. to iec 60068-2-6 | 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In |
| rated service short-circuit breaking capacity (ics) | (400 V AC) 6 kA |
| rated ultimate short-circuit breaking capacity (icu) | (230 V AC) 10 kA(400 V AC) 6 kA |
