ABB

2CDS271437R0407

Name: 2CDS271437R0407
Brand: ABB
Availability: PreOrder

Product type: S201MR-K8

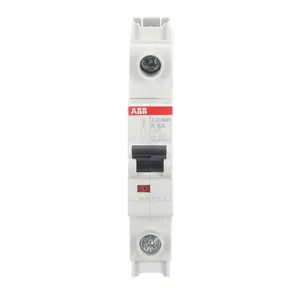

S201MR-K8 Miniature Circuit Breaker - 1P - K - 8 A

Datasheet

Description

S201MR-K8 MCB K-Char., 10kA, 8A, 1P, RTT UL 1077, Ring Cable Lug

Low Voltage Products and Systems
Modular DIN Rail Products
Miniature Circuit Breakers MCBs

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CDS271437R0407.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.14 KG / psc.
Commodity number	85362010
Country of origin	DE
Dimensions (WxHxD)	17.5x100x71 mm
EAN code	4016779956895
Product group	AA
cn8	8536 20 10
eclass	V11.0 : 27141901
etim 7	EC000042 - Miniature circuit breaker (MCB)
etim 8	EC000042 - Miniature circuit breaker (MCB)
unspsc	39121614
standards	CSA 22.2 No. 235IEC/EN 60947-2UL 1077
power loss	1.4 Wat Rated Operating Conditions per Pole 1.4 W
rohs status	Following EU Directive 2011/65/EU
terminal type	Double Clamp
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
number of poles	1
pollution degree	3
rohs information	https://library.abb.com/d/2CDK400687D2702
eplan catalog tree	Electrical engineering / Protection devices / General
input voltage type	AC
rated current (in)	8 A
built-in depth (t2)	69 mm
connecting capacity	Flexible with Ferrule 0.75 ... 25 mm2Flexible 0.75 ... 25 mm2Rigid 0.75 ... 35 mm2Stranded 0.75 ... 35 mm2
rated frequency (f)	50 / 60 Hz
certification agency	CSAENIECUL
degree of protection	IP20
overvoltage category	III
accessories available	Yes
energy limiting class	3
ambient air temperature	Operation -25 ... +55 °C
tripping characteristic	K
number of protected poles	1
rated operational voltage	acc. to IEC 60898-1 400 V ACacc. to IEC 60947-2 230 V AC
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 440 V
declaration of conformity - ce	https://library.abb.com/d/2CDK400687D2702
data sheet, technical information	https://library.abb.com/d/No document needed
interrupting rating acc. to ul1077	(277 V AC) 10 kA
rated short-circuit capacity (icn)	(230 V AC) 10 kA(400 V AC) 10 kA
width in number of modular spacings	1
rated impulse withstand voltage (uimp)	4 kVat 2000 m 5 kVat Sea Level 6.2 kV
rated conditional short-circuit current (inc)	(230 V) 10 kA(400 V) 10 kA
rated service short-circuit breaking capacity (ics)	(230 V AC) 10 kA
rated ultimate short-circuit breaking capacity (icu)	(230 V AC) 15 kA(400 V AC) 10 kA
