Product type: S202M-C50UC

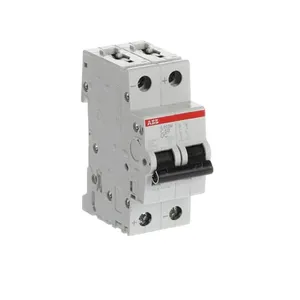

S202M-C50UC Miniature Circuit Breaker - 2P - C - 50 A
Description
The miniature circuit breaker S 200 M UC extends the establishedABB System pro M compact® product range with an MCB for DC and AC applications. The S 200 M UC impresses with its performance range and the accordingly large amount of approvals. Its high inbuilt short circuit breaking capacity across theentire model line, its flexible AC and DC application and its approval and compliance in accordance with all major international and local standards make it truly unique.All current System pro M compact® accessories can be combined easily with the new model line. Whether warehousing or project engineering, planning, installing or maintaining your equipment, the S 200 M UC is a simple and flexible solution.
Read More
- Low Voltage Products and Systems
- Modular DIN Rail Products
- Miniature Circuit Breakers MCBs
| Contact Person |
|---|
| Thomas Hoffmann |
| +49 305 201 4443 ext. 1 |
| sales@zwodltd.com |
| Payment |
|---|
    |
| Worldwide shipping |
|---|
     |
| Additional Information |
|---|
| Price: Please send request |
| Request Lead Time: ca. 1-2 Days |
| Delivery Time: By Agreement |
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022 |
- ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CDS272061R0504.
- ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.25 KG / psc. |
| Commodity number | 85362010 |
| Country of origin | Germany (DE) |
| Dimensions (WxHxD) | 35x88x69 mm |
| EAN code | 4013614433061 |
| Product group | AA |
| cn8 | 8536 20 10 |
| eclass | V11.0 : 27141901 |
| etim 7 | EC000042 - Miniature circuit breaker (MCB) |
| etim 8 | EC000042 - Miniature circuit breaker (MCB) |
| unspsc | 39121614 |
| remarks | Please note polarity of device |
| standards | IEC/EN 60898-2IEC/EN 60947-2 |
| power loss | 8.88 Wat Rated Operating Conditions per Pole 4.44 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| weee b2c / b2b | Business To Business |
| number of poles | 2 |
| pole net weight | 0.125 kg |
| actuator marking | I / O |
| housing material | Insulation Group I, RAL 7035 |
| options provided | Universal current |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/2CDK400583D2704 |
| actuator material | Insulation Group II, Black, Sealable |
| installation size | acc. to DIN 43880 1 |
| mounting position | Any |
| tightening torque | 2.8 N·m |
| e-number (finland) | 3210348 |
| eplan catalog tree | Electrical engineering / Protection devices / General |
| input voltage type | AC/DC |
| rated current (in) | 50 A |
| built-in depth (t2) | 69 mm |
| connecting capacity | Busbar 10 / 10 mm2Flexible with Ferrule 0.75 ... 25 mm2Flexible 0.75 ... 25 mm2Rigid 0.75 ... 35 mm2Stranded 0.75 ... 35 mm2 |
| operational voltage | Maximum (Incl. Tolerance) 440 V ACMaximum (Incl. Tolerance) 500 V DCMinimum 12 V ACMinimum 12 V DC |
| rated frequency (f) | 50 / 60 HzDC |
| screw terminal type | Failsafe Bi-directional Cylinder-lift Terminal |
| certification agency | ENIEC |
| degree of protection | IP20Enclosure with Cover IP40 |
| electrical endurance | 10000 AC cycle |
| mechanical endurance | 20000 cycle |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | III |
| accessories available | Yes |
| energy limiting class | 3 |
| ambient air temperature | Operation -25 ... +55 °CStorage -40 ... +70 °C |
| dielectric test voltage | 50/60 Hz, 1 min: 2 kV |
| power supply connection | Please Note Polarity of Device |
| tripping characteristic | C |
| environmental conditions | 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 % |
| recommended screw driver | Pozidriv 2 |
| tightening torque ul/csa | 25 in·lb |
| environmental information | https://library.abb.com/d/2CDK400030D201 |
| number of protected poles | 2 |
| rated operational voltage | acc. to IEC 60898-1 400 V ACacc. to IEC 60898-1 440 V DCacc. to IEC 60898-2 400 V ACacc. to IEC 60898-2 440 V DCacc. to IEC 60947-2 440 V ACacc. to IEC 60947-2 440 V DC |
| connecting capacity ul/csa | Busbar 14-8 AWGConductor 14-4 AWG |
| object classification code | F |
| contact position indication | Red ON / Green OFF |
| rated short-circuit capacity | (AC) 10 kA(DC) 10 kA(230 V AC) 10 kA(253 V AC) 10 kA(400 V AC) 10 kA(440 V DC) 10 kA |
| rated insulation voltage (ui) | acc. to IEC/EN 60664-1 484 V |
| declaration of conformity - ce | https://library.abb.com/d/2CDK400583D2704 |
| maximum operating voltage ul/csa | 480Y/277 V AC500 V DC |
| data sheet, technical information | https://library.abb.com/d/2CDC002142D0207 |
| reference ambient air temperature | 30 °C |
| interrupting rating acc. to ul1077 | (220 V AC) 10 kA(277 V AC) 6 kA(440 V DC) 10 kA(480Y / 277 V AC) 10 kA(500 V DC) 10 kA |
| width in number of modular spacings | 2 |
| rated impulse withstand voltage (uimp) | 4 kVat 2000 m 5 kVat Sea Level 6.2 kV |
| resistance to shock acc. to iec 60068-2-27 | 25g / 2 shocks / 13 ms |
| rated conditional short-circuit current (inc) | (230 V) 15 kA(400 V) 15 kA |
| resistance to vibrations acc. to iec 60068-2-6 | 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In |
| rated service short-circuit breaking capacity (ics) | (220 V DC) 20 kA |
| rated ultimate short-circuit breaking capacity (icu) | (220 V DC) 25 kA(230 V AC) 15 kA(400 V AC) 15 kA(440 V AC) 6 kA(440 V DC) 10 kA |
