ABB

2CMA162744R1000

Name: 2CMA162744R1000
Brand: ABB
Availability: PreOrder

Product type: 3125MVS9WH

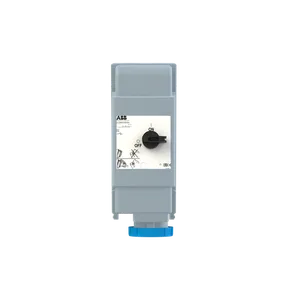

3125MVS9WH Industrial Switched Interlocked Socket Outlet

Description

Switched Interlocked Socket Outlet, vertical, Heavy Duty, earthing sleeve position 9h, rated current 125A, IP67 watertight, 3-poles+earth

Low Voltage Products and Systems
Industrial Plugs and Sockets
Critical & Safe
Switched Interlocked Socket Outlets

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 2CMA162744R1000.
ZWOD Vertriebs und Logistik GmbH carries 225191 items from ABB.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	4.3 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	175x241x0.463 mm
EAN code	7392696627443
Product group	SI
color	Blue
eclass	27440510
unspsc	39120000
function	Switched Interlocked Socket outlet, vertical, Heavy Duty
standards	IEC 60309-1, -2, -4
wire size	3 ... 1 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Switched Interlocked Socket Outlet
suitable for	Switched Interlocked Socket Outlets, Vertical
frequency (f)	50 Hz60 Hz
mounting type	Vertical
cable diameter	24 ... 48 mm
cb certificate	https://library.abb.com/d/2CHC660160X0201
mounting holes	378x145, 128x145
order multiple	1 piece
connection type	Screw
number of poles	4
protection type	Switched Interlocked
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2416968
e-number (sweden)	2416968
product main type	CMVS
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1506655
tightening torque	WireClamp5.6 N·m
e-number (finland)	2416968
rated current (in)	125 A
rated voltage (ur)	200 ... 250 V
ambient temperature	-25 ... 40 °C
cable cross-section	16 ... 70 mm2
installation manual	https://library.abb.com/d/2CMC000043M0001
invoice description	IND. P&S#3125MVS9WH
mechanical drawings	https://library.abb.com/d/9AKK107991A3935
cable entry position	Knock-out on Top and drill marks down
degree of protection	IP67IP69
additional information	3P+E
cable outlets per side	1xØ40+1xØ50 mm on top and drill marks on bottom
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000057M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
number of auxiliary contacts no	1
